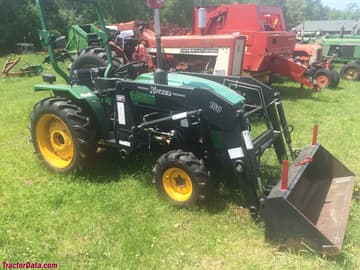

agracat 2720
 | 2001 - 2004
Compact Utility tractorJinma built | 2001 - 2004 | Compact Utility tractor | Jinma built |
|---|---|---|---|---|
2001 - 2004 | ||||
Compact Utility tractor | ||||
Jinma built | ||||
2001 - 2004 | |
|---|---|
Compact Utility tractor | |
Jinma built |
Production | |
|---|---|
Distributor | AgraCat |
Manufacturer | Jinma |
Compact Utility tractor | |
Built in China | |
AgraCat 2720 Engine | |
|---|---|
3-cyl diesel | |
Engine details ...  |
AgraCat 2720 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
AgraCat 2720 Power | |
|---|---|
Engine | 20 hp
14.9 kW |
PTO (claimed) | 19 hp
14.2 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Photos | |
|---|---|
 | |
AgraCat 2720 photos...  |
Hydraulics | |
|---|---|
Pressure | 3200 psi
220.6 bar |
Total flow | 9.66 gpm
36.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 810 lbs
367 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (two-stage clutch) |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 60 inches
152 cm |
Weight | 2,652 lbs
1202 kg |
Front tire | 6.00-12 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
