Allis Chalmers 170

The Allis Chalmers 170 is a tractor produced by Allis Chalmers. It is equipped with a 226 ci 3.7 L engine. The listed engine power is 54.12 hp 40.4 kW. Transmission: Power Director. Operating weight: 5720 to 5950 pounds.

Engine Power

54.12 hp 40.4 kW

Fuel & Capacities

18.5 gal 70.0 L

Transmission

Power Director

Operating Weight

5720 to 5950 pounds

Overview

	1967 - 1973 Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Total built	9,303
Original price	$6,887 (1973)

Allis Chalmers 170 Transmission
8-speed two-speed power shift
Transmission details ...

Allis Chalmers 170 Power
Drawbar (tested)	47.39 hp 35.3 kW
PTO (tested)	54.12 hp 40.4 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	hydraulic power assist
Differential mechanical contracting band and disc brakes
Open operator station.

Capacity
Fuel	18.5 gal 70.0 L
Hydraulic system	6.5 gal 24.6 L

Hydraulics
Type	open
Capacity	6.5 gal 24.6 L
Pressure	2000 psi 137.9 bar
Valves	1
Pump flow	18.3 gpm 69.3 lpm
Steering flow	6 gpm 22.7 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	95.5 inches 242 cm
Weight	5720 to 5950 pounds
Front tire	6.00x16
Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	60 (gas)
	95 (diesel)

References

Loaders - picking up where the others leave off published in 1979, by Allis Chalmers
One-Seventy Tractor with XT Ideas published in 1967, by Allis Chalmers
One-Seventy Tractor published in 1968, by Allis Chalmers
Operators Instruction for One-Seventy Tractor (TM-462B) published in 1967

Engine

Engine options
Perkins 3.9L 4-cyl diesel
Allis Chalmers 3.7L 4-cyl

Engine Detail — 236 ci / 3.9 L Diesel

Manufacturer	Perkins 4.236
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	236 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Compression	16:1
Rated RPM	1800
Firing order	1-3-4-2
Coolant capacity	15 qts 14.2 L
Intake valve clearance	0.010 inches (hot) 0.254 mm
Exhaust valve clearance	0.010 inches (hot) 0.254 mm
Oil capacity	7 qts 6.6 L

Engine Detail — 226 ci / 3.7 L

Manufacturer	Allis Chalmers G-226
Configuration	4-cylinder, liquid-cooled
Displacement	226 ci 3.7 L
Bore/Stroke	4.00x4.50 inches 102 x 114 mm
Compression	8:1
Rated RPM	1800
Firing order	1-2-4-3
Coolant capacity	15 qts 14.2 L
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.022 inches 0.559 mm
Intake valve clearance	0.010 inches 0.254 mm
Exhaust valve clearance	0.014 inches 0.356 mm
Oil capacity	6 qts 5.7 L

Transmission

Transmission — Power Director

Transmission	Power Director
Type	two-speed power shift
Gears	8 forward and 2 reverse
Clutch	dry disc
Oil capacity	24 qts 22.7 L
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.
With 16.9x28 rear tires.

Dimensions

Allis Chalmers 170 Tires
Ag front	6.00x16
	6.50x16
	7.50x16
	7.50x20 (cane)
	9.00x10
Ag rear	16.9-28

Dimensions
Wheelbase	95.5 inches 242 cm
Length	150.14 inches 381 cm
Width	78 inches 198 cm
Ground clearance	20.5 inches (front axle) 52 cm
	31.2 inches (final drive) 79 cm

Allis Chalmers 170 Weight
Operating	5,720 lbs (gas) 2594 kg
	5,950 lbs (diesel) 2698 kg
Ballasted	9,160 lbs 4154 kg

Allis Chalmers 170 Height
	58.8 inches (hood) 149 cm
	67.4 inches (steering) 171 cm
	89.6 inches (muffler) 227 cm

Tests

Tractor Tests
NTTL 965: diesel 8-speed 2WD
NTTL 966: gasoline 8-speed 2WD

Nebraska Tractor Test 965
Diesel 8-speed 2WD October 13 - 27, 1967 Link: Nebraska Tractor Test 965 file
PTO performance
Power at rated engine speed	54.04 hp 40.3 kW
Fuel use	3.3 gal/hour 12.5 l/hour
Power at rated PTO speed	50.59 hp 37.7 kW
Fuel use	3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power	47.39 hp 35.3 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Gear 5 used for power test.
Max pull	6881 lbs 3121 kg
Gear 1 used for pull test.

Nebraska Tractor Test 966
Gasoline 8-speed 2WD October 16 - 27, 1967 Link: Nebraska Tractor Test 966 file
PTO performance
Power at rated engine speed	54.12 hp 40.4 kW
Fuel use	4.3 gal/hour 16.3 l/hour
Power at rated PTO speed	51.46 hp 38.4 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power	46.93 hp 35.0 kW
Fuel use	4.4 gal/hour 16.7 l/hour
Gear 5 used for power test.
Max pull	6851 lbs 3107 kg
Gear 1 used for pull test.

Photos

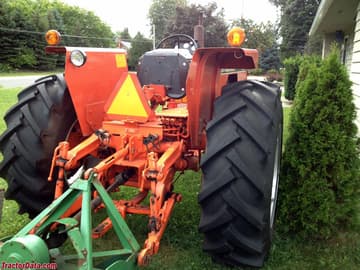

Allis-Chalmers 170 with wide front end.

Allis-Chalmers 170 with tricycle front end.

Recommended Implements & Sizing Guide

Engineering recommendations for Allis Chalmers 170 based on its 54.12 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers 170.

Estimated Continuous Field Runtime: 6.6 hrs

Approximately 6.6 hours of continuous field operation at ~75% rated power on a full tank (18.5 gal / 70 L).

Estimated 75% Load Fuel Burn~2.8 gal/hr (10.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
