allis chalmers 175
 | 1970 - 1980
Row-Crop tractor | 1970 - 1980 | Row-Crop tractor |
|---|---|---|---|
1970 - 1980 | |||
Row-Crop tractor | |||
1970 - 1980 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
Perkins 3.9L 4-cyl diesel | |
Perkins 4.1L 4-cyl diesel | |
Allis-Chalmers 3.7L 4-cyl gasoline |
Engine Detail | |
|---|---|
Perkins 4.236 | |
diesel | |
4-cylinder | |
liquid-cooled | |
Original diesel engine, used through Allis 175 serial number 1458. | |
Displacement | 236 ci
3.9 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Air cleaner | dry |
Compression | 16:1 |
Rated RPM | 2000 |
Starter volts | 12 |
Engine Detail | |
|---|---|
Perkins 4.248 | |
diesel | |
4-cylinder | |
liquid-cooled | |
The 248 cubic-inch diesel was used in the Allis 175 starting in December of 1970, serial number 1459. | |
Displacement | 248 ci
4.1 L |
Bore/Stroke | 3.975x5.00 inches
101 x 127 mm |
Air cleaner | dry |
Compression | 16:1 |
Rated RPM | 2000 |
Starter volts | 12 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 15 qts
14.2 L |

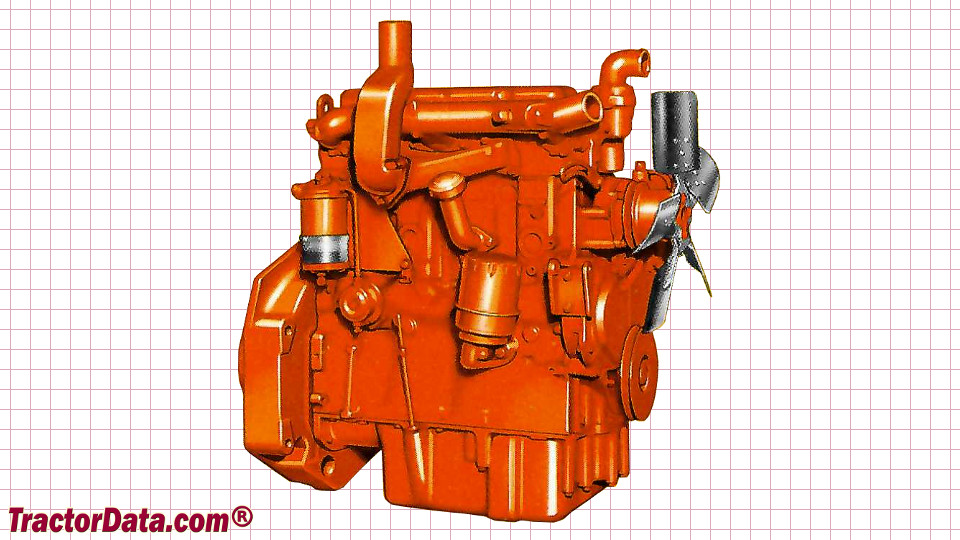

Allis Chalmers 175 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Allis-Chalmers G226 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
The gasoline engine was avaialble on the Allis-Chalmers 175 until 1976. | |
Displacement | 226 ci
3.7 L |
Bore/Stroke | 4.00x4.50 inches
102 x 114 mm |
Air cleaner | dry |
Compression | 8.2:1 |
Rated RPM | 1800 |
Starter volts | 12 |
Oil capacity | 7 qts
6.6 L |
Coolant capacity | 15 qts
14.2 L |
Allis Chalmers 175 Engine | |
|---|---|
 |
 | |
|---|---|
