allis chalmers 7020

1978 - 1981

7000 Series

Row-Crop tractor

7000 Series

Row-Crop tractor

NTTL 1259: diesel Power shift 2WD

NTTL 1260: diesel Power Director 2WD

Diesel Power shift 2WD October 10 - 21, 1977 Link: Nebraska Tractor Test 1259 file

PTO performance

Power at rated engine speed

123.79 hp 92.3 kW

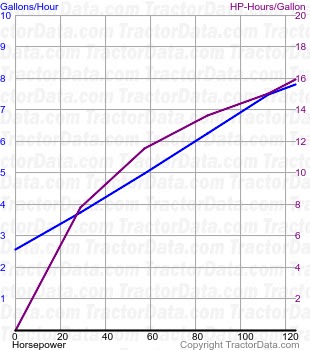

Fuel use

7.8 gal/hour 29.5 l/hour

Power at rated PTO speed

123.50 hp 92.1 kW

Fuel use

7.7 gal/hour 29.1 l/hour

Drawbar performance

Max power

101.89 hp 76.0 kW

Fuel use

7.8 gal/hour 29.5 l/hour

Gear 1F used for power test.

Max pull

12,001 lbs 5443 kg

Gear 2S used for pull test.

Diesel Power Director 2WD October 10 - 21, 1977 Link: Nebraska Tractor Test 1260 file

PTO performance

Power at rated engine speed

123.85 hp 92.4 kW

Fuel use

7.8 gal/hour 29.5 l/hour

Power at rated PTO speed

125.51 hp 93.6 kW

Fuel use

7.8 gal/hour 29.5 l/hour

Drawbar performance

Max power

102.09 hp 76.1 kW

Fuel use

7.8 gal/hour 29.5 l/hour

Gear 4SL used for power test.

Max pull

11,964 lbs 5426 kg

Gear 2SL used for pull test.
