Allis Chalmers 7580

The Allis Chalmers 7580 is a tractor produced by Allis Chalmers. It is equipped with a 426 ci 7.0 L engine. The rated power output is 186.35 hp 139.0 kW. Transmission: Power Director. Operating weight: 23100 to 23510 pounds.

Overview

	1976 - 1981 Four-wheel Drive (4WD) tractor
1976 - 1981
Four-wheel Drive (4WD) tractor

Production
Manufacturer	Allis Chalmers
Four-wheel Drive (4WD) tractor
Built in West Allis, Wisconsin, USA
Total built	1610
Original price	$63,084

Allis Chalmers 7580 Engine
Allis Chalmers 7.0L 6-cyl diesel
Fuel tank	170 gal 643.5 L
Engine details ...

Allis Chalmers 7580 Transmission
20-speed partial power shift
Transmission details ...

Allis Chalmers 7580 Power
Drawbar (claimed)	153 hp 114.1 kW
PTO (claimed)	186 hp 138.7 kW
Drawbar (tested)	153.70 hp 114.6 kW
PTO (tested)	186.35 hp 139.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Hydraulic wet discs brakes
Acousta cab standard with heat and air-conditioning. Optional radio and 8 track tape player.

Hydraulics
Type	closed center
Valves	3 to 4
Pump flow	23 gpm 87.1 lpm
Total flow	74.9 gpm 283.5 lpm

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	126 inches 320 cm
Weight	23100 to 23510 pounds
Front tire	20.8x38
Rear tire	20.8x38
Full dimensions and tires ...

Electrical
Charging system	alternator
Batteries	4
Battery volts	12

References
Four-wheel drives - mammoth size... published in 1978, by Allis Chalmers
7580 - The beat built to eat acres, not fuel. published in 1977, by Allis Chalmers

Engine

Engine Detail — 426 ci / 7.0 L Diesel

Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled inline
Allis Chalmers 3750 Mark II
Displacement	426 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Air cleaner	dry
Compression	16:1
Rated RPM	2550
Idle RPM	775-2750
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	25 qts 23.7 L
Coolant capacity	38 qts 36.0 L

Transmission

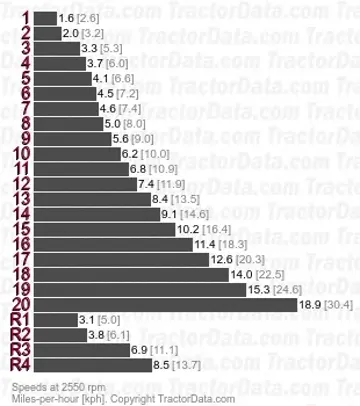

Transmission — Power Director

Transmission	Power Director
Type	partial power shift
Gears	20 forward and 4 reverse
With 20.8x38 rear tires.

Dimensions

Allis Chalmers 7580 Tires
Ag front	20.8x38
Ag rear	20.8x38
Ag front	23.1x30
	24.5x32
	30.5x32
	20.8x34
	18.4x38
Ag rear	23.1x30
	24.5x32
	30.5x32
	20.8x34
	18.4x38

Dimensions
Wheelbase	126 inches 320 cm
Length	225 inches 571 cm
Width	95.5 inches 242 cm
	119.5 inches (long axle) 303 cm
Height (hood)	85.3 inches 216 cm
Height (exhaust)	150 inches 381 cm
Ground clearance	17 inches 43 cm
Front tread	62 to 123 inches 157 to 312 cm
Rear tread	62 to 123 inches 157 to 312 cm

Allis Chalmers 7580 Weight
Shipping	23,100 lbs 10478 kg
Operating	23,510 lbs 10664 kg
Ballasted	25,000 lbs 11340 kg

Tests

Nebraska Tractor Test 1229
Diesel 20-speed 4WD October 26 - November 8, 1976 Link: Nebraska Tractor Test 1229 file
PTO performance
Power at rated engine speed	186.35 hp 139.0 kW
Fuel use	12.6 gal/hour 47.7 l/hour
Drawbar performance
Max power	153.70 hp 114.6 kW
Fuel use	12.6 gal/hour 47.7 l/hour
Gear 4SL used for power test.
Max pull	23,310 lbs 10573 kg
Gear 1SH used for pull test.

Photos

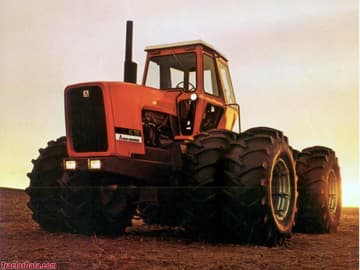

Allis-Chalmers 7580 promotional photo.

Allis-Chalmers 7580, left side.

Allis-Chalmers 7580 with singles.

Allis-Chalmers 7580 overhead controls for air-conditioning, electric mirrors, and stadium lights.
