allis chalmers hd6
 | 1955 - 1974
Agricultural Crawler tractor | 1955 - 1974 | Agricultural Crawler tractor |
|---|---|---|---|
1955 - 1974 | |||
Agricultural Crawler tractor | |||
1955 - 1974 | |
|---|---|
Agricultural Crawler tractor |
Nebraska Tractor Test 580 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 580 | |
|---|---|
Diesel 5-speed crawler
July 7 - 14, 1956
Link: Nebraska Tractor Test 580 file | |
Belt power (max) | 60.51 hp
45.1 kW |

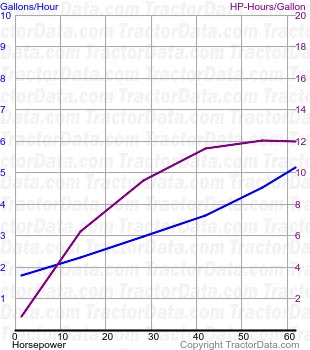

Belt fuel use (max) | 5.3 gal/hour
20.1 l/hour |
Drawbar performance | |
Max power | 49.95 hp
37.2 kW |
Gear 2 used for power test. | |
Max pull | 12636 lbs
5731 kg |
Gear 1 used for pull test. | |
