allis chalmers hd7
 | 1940 - 1950
Agricultural Crawler tractor | 1940 - 1950 | Agricultural Crawler tractor |
|---|---|---|---|
1940 - 1950 | |||
Agricultural Crawler tractor | |||
1940 - 1950 | |
|---|---|
Agricultural Crawler tractor |
Engine Detail | |
|---|---|
General Motors 3-71 | |
blower diesel | |
3-cylinder | |
liquid-cooled 2-cycle vertical I-head | |
Displacement | 213 ci
3.5 L |
Bore/Stroke | 4.25x5.00 inches
108 x 127 mm |
Air cleaner | oil bath |
Compression | 16.0:1 |
Rated RPM | 1500 |
Starter volts | 12 |
Coolant capacity | 23 qts
21.8 L |
Engine Oil | |
|---|---|
 | |
Oil capacity | 8.5 qts
8.0 L |

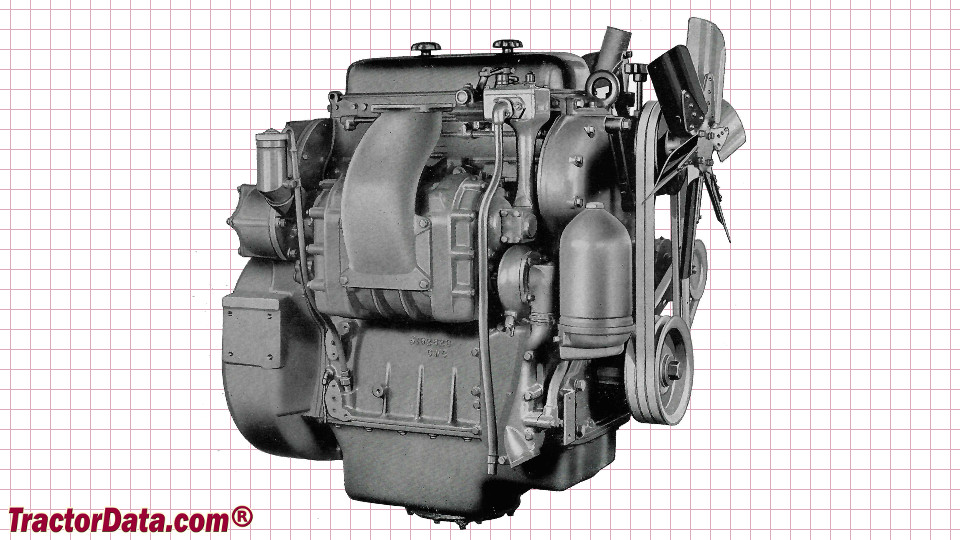

Allis Chalmers HD7 Engine | |
|---|---|
 |
 | |
|---|---|
