Allis Chalmers Scamp 5 1600150
The Allis Chalmers Scamp 5 1600150 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 170 cc 10.43 ci engine. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 2 forward and 1 reverse. Operating weight: 259 lbs*Weight with mower deck. 117 kg.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
2 forward and 1 reverse
Operating Weight
259 lbs*Weight with mower deck.
117 kg
Overview
 | 1972 - 1974
Model year 19721974
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Riding lawn mower | |
Allis Chalmers Scamp 5 Engine | |
|---|---|
5HP Briggs & Stratton 170cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Allis Chalmers Scamp 5 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 259 lbs
117 kg |
Front tire | 4.10x3.50-4 |
Rear tire | 4.80x4.00-8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Riding mower for lawn lovers published in 1972, by Allis-Chalmers |
Engine
Engine Detail — 170 cc / 10.43 ci Gasoline
Manufacturer | Briggs & Stratton 100202 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 170 cc
10.43 ci |
Bore/Stroke | 2.50x2.125 inches
64 x 54 mm |
Power | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
Transmission — 2 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Allis Chalmers Scamp 5 Tires | |
|---|---|
Lawn/turf front | 4.10x3.50-4 |
Lawn/turf rear | 4.80x4.00-8 |
Dimensions | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Length | 58 inches
147 cm |
Width | 28.3 inches
71 cm |
Height (steering wheel) | 36.5 inches
92 cm |
Height (hood) | 29.3 inches
74 cm |
Weight | 259 lbs*Weight with mower deck.
117 kg |
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Allis Chalmers |
1-blade with manual lift | |
Cutting width | 24 inches
60 cm |
Overall width | 28.5 inches
72 cm |
Cut height | 2 to 3.125 inch
5 to 7 cm |
Photos

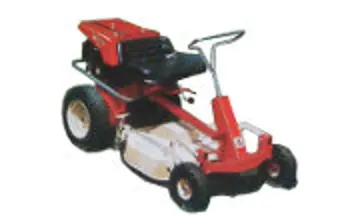

Allis Chalmers Scamp 5 1600150 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers Scamp 5 1600150.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers Scamp 5 1600150 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers Scamp 5 1600150.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
