Ariens Grand Sierra 2200
The Ariens Grand Sierra 2200 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 674 cc 41.13 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: infinite forward and reverse. Operating weight: 950 lbs 430 kg.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
4.5 gal
17.0 L
Transmission
infinite forward and reverse
Operating Weight
950 lbs
430 kg
Overview
 | 1996 - 2001
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ariens |
Garden tractor | |
Built in Brillion, Wisconsin, USA | |
Variants | |
|---|---|
931038 | no attachments |
Ariens Grand Sierra 2200 Engine | |
|---|---|
22HP Kohler 674cc 2-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Ariens Grand Sierra 2200 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Steering | hydraulic power |
Disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electric |
Rear PTO Type | 3250 |
Front PTO | independent |
Clutch | electric |
Front PTO Type | 3600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 950 lbs
430 kg |
Front tire | 16-6.50x8 |
Rear tire | 23-10.50x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 290 |
Battery volts | 12 |
References | |
|---|---|
 | |
Yard Tractors published in 2001, by Ariens |
Engine
Engine Detail — 674 cc / 41.13 ci Gasoline
Manufacturer | Kohler CH22 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 674 cc
41.13 ci |
Bore/Stroke | 3.15x2.64 inches
80 x 67 mm |
Power (gross) | 22 hp
16.4 kW |
Fuel use | 1.8 gal/hour
6.8 l/hour |
Air cleaner | dry element with foam precleaner |
Starter | electric |
Starter volts | 12 |
Sparkplug | RC12YV |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.5 qts
5.2 L |
Oil type | SAE 5W-30 |
 | |
Dimensions
Ariens Grand Sierra 2200 Tires | |
|---|---|
Lawn/turf front | 16-6.50x8 |
Lawn/turf rear | 23-10.50x12 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 75 inches
190 cm |
Width | 43 inches
109 cm |
Height (steering wheel) | 47 inches
119 cm |
Shipping weight | 950 lbs
430 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

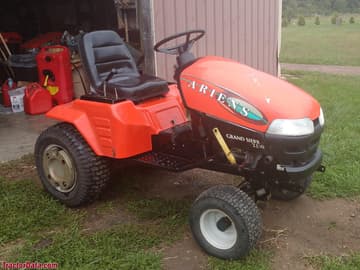

Ariens Grand Sierra 2000.

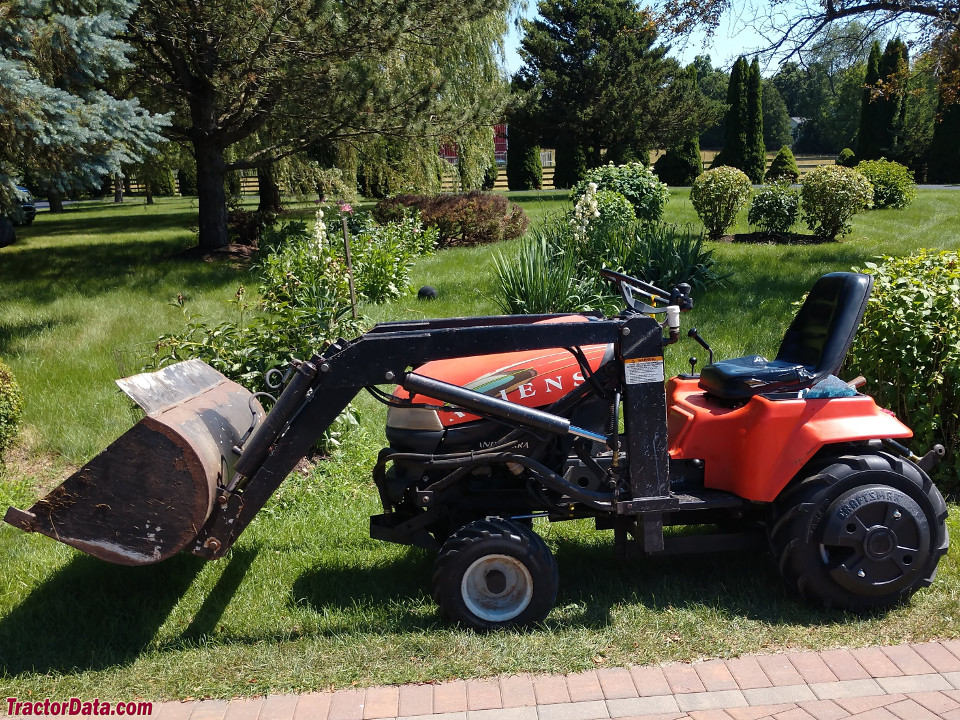

Grand Sierra with Kwik-Way loader.

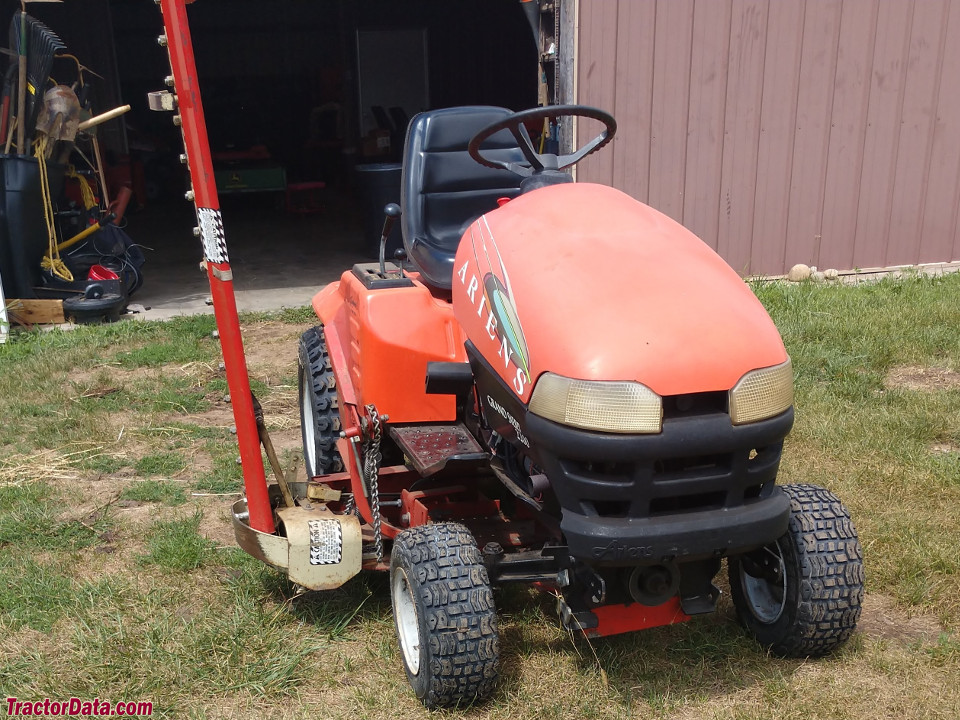

Haban sickle mower on a Grand Sierra.
Recommended Implements & Sizing Guide
Engineering recommendations for Ariens Lawn Tractors Ariens Grand Sierra 2200 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ariens Lawn Tractors Ariens Grand Sierra 2200.
Estimated Continuous Field Runtime: 3.9 hrs
Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ariens Lawn Tractors Ariens Grand Sierra 2200 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ariens Lawn Tractors Ariens Grand Sierra 2200.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
Direct Competitor Comparison
Compare Ariens Grand Sierra 2200 against same-era industry alternatives in the same horsepower class.
Current Model
Ariens Lawn Tractors
Ariens Grand Sierra 2200
Engine Power:Gasoline (gross): 22 hp / 16.4 kW
★ Baseline Reference
