Ariens GT14 931022

The Ariens GT14 931022 is a tractor produced by Ariens Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 500 lbs 226 kg.

Overview

	1979 - 1982 Garden tractor

Production
Manufacturer	Ariens
Garden tractor
Built in Brillion, Wisconsin, USA

Ariens GT14 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	4.5 gal 17.0 L
Engine details ...

Ariens GT14 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electric
Front PTO	independent
Clutch	electric
Front PTO Type	pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	895 lbs 405 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	255
Battery volts	12
Battery AH	39

References
Lawn & Garden Tractors published in 1979, by Ariens
Lawn and Garden Tractors published in 1980, by Ariens

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power (gross)	14 hp 10.4 kW
Fuel use	1.35 gal/hour 5.1 l/hour
Air cleaner	dry element with foam precleaner
Compression	7.0:1
Starter	electric
Starter volts	12
Sparkplug gap	0.025 inches 0.635 mm
Oil capacity	2 qts 1.9 L

Ariens GT14 Engine
Image courtesy of Dan La Pointe

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.5 qts 5.2 L
Oil type	SAE 5W-30

Dimensions

Ariens GT14 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48 inches 121 cm
Length	74.75 inches 189 cm
Width	43 inches 109 cm
Height (steering wheel)	47.75 inches 121 cm
Shipping weight	895 lbs 405 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Brantly LD6 Backhoe
Backhoe type	Brantly LD6 Backhoe
Weight	500 lbs 226 kg
Transport height	72 inches 182 cm
2-Foot flat digging depth	72 inches 182 cm
Reach from pivot	108 inches 274 cm
Swing Arc	135°
Bucket force	3000 lbs 1360 kg
Dipperstick force	1560 lbs 707 kg

Photos

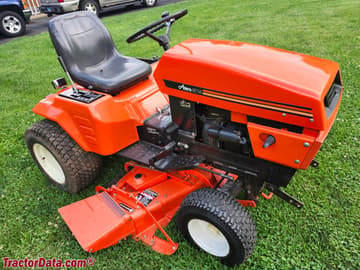

Ariens GT14 garden tractor.
