ariens lawn tractors rm828
 | 1981 - 1995
927 SeriesRiding lawn mower | 1981 - 1995 | 927 Series | Riding lawn mower |
|---|---|---|---|---|
1981 - 1995 | ||||
927 Series | ||||
Riding lawn mower | ||||
1981 - 1995 | |
|---|---|
927 Series | |
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Ariens |
Riding lawn mower | |
Built in Brillion, Wisconsin, USA | |
Original price was $1,199 in 1985 | |
Variants | |
|---|---|
927009 | Tecumseh VM80 recoil |
927021 | Tecumseh TVM195 recoil |
927031 | Tecumseh TVM195 electric |
927039 | Tecumseh TVXL195 electric |
927042 | Kawasaki FC290 electric |
927045 | Briggs 19 electric |

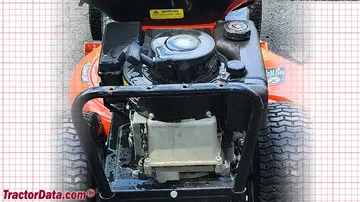

Ariens RM828 Engines | |
|---|---|
8HP Tecumseh 305cc 1-cyl gasoline | |
8HP Tecumseh 318cc 1-cyl gasoline | |
8HP Kawasaki 286cc 1-cyl gasoline | |
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Ariens RM828 Transmission | |
|---|---|
6-speed fiction disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Ariens RM828 photos...  |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | idler pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 375 lbs
170 kg |
Front tire | 4.10-3.50x4 |
Rear tire | 4.80-4.00x8 |
Full dimensions and tires ...  | |
Ariens RM828 attachments | |
|---|---|
28" mid-mount mower deck | |
blade | |
Attachment details ...  |
RM828 Serial Number Location | |
|---|---|
 | |
RM828 Serial Numbers | |
|---|---|
FAQ: How to read a serial number table. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Riding Mowers published in 1980, by Ariens | |
Mowers - Tractors - Tillers published in 1987, by Ariens |
