Avery 40-80
The Avery 40-80 is a tractor produced by Avery. It is equipped with a 1509.5 ci 24.7 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 22000 lbs 9979 kg.
Fuel & Capacities
44 gal
166.5 L
Transmission
2 forward and 1 reverse
Operating Weight
22000 lbs
9979 kg
Overview
 | 1913 - 1920 |
|---|
Production | |
|---|---|
Manufacturer | Avery |
Built in Peoria, Illinois | |
Original price | $2,800 |
Avery 40-80 Engine | |
|---|---|
Avery 24.7L 4-cyl kerosene | |
Fuel tank | 44 gal
166.5 L |
Aux. fuel | 6.75 gal
25.5 L |
Engine details ...  | |
Avery 40-80 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Avery 40-80 Power | |
|---|---|
Drawbar (claimed) | 40 hp
29.8 kW |
Belt (claimed) | 80 hp
59.7 kW |
Drawbar (tested) | 49.97 hp
37.3 kW |
Belt (tested) | 69.23 hp
51.6 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Steel cab. | |
Dimensions & Tires | |
|---|---|
Weight | 22000 lbs
9979 kg |
Front tire | 42x16 |
Rear tire | 87.5x24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 1509.5 ci / 24.7 L Kerosene
Manufacturer | Avery |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled opposed horizontal |
Displacement | 1509.5 ci
24.7 L |
Bore/Stroke | 7.75x8.00 inches
197 x 203 mm |
Rated RPM | 500 |
Coolant capacity | 360 qts
340.7 L |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Avery 40-80 Tires | |
|---|---|
Ag front | 42x16 steel |
Ag rear | 87.5x24 steel |
Dimensions | |
|---|---|
Length | 215 inches
546 cm |
Width | 111.5 inches
283 cm |
Height | 121 inches
307 cm |
Weight | 22000 lbs
9979 kg |
Tests
Nebraska Tractor Test 44 | |
|---|---|
Kerosene 2-speed 2WD
July 26 - August 3, 1920
Link: Nebraska Tractor Test 44 file | |
Belt power (max) | 69.23 hp
51.6 kW |
Belt fuel use (max) | 8.4 gal/hour
31.8 l/hour |
Drawbar performance | |
Max power | 49.97 hp
37.3 kW |
Gear 1 used for power test. | |
Max pull | 8475 lbs
3844 kg |
Gear 1 used for pull test. | |
Photos

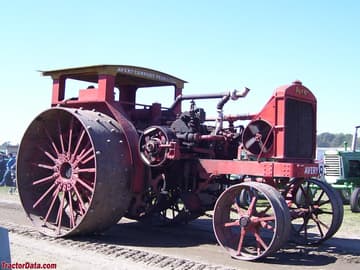

Avery 40-80
Avery 40-80 rear view.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Avery 40-80.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
