Barreiros R-500 B

The Barreiros R-500 B is a tractor produced by Barreiros. It is equipped with a 203.8 ci 3.3 L engine. The rated power output is 60 hp 44.7 kW. Transmission: 5 forward and 1 reverse.

Engine Power
60 hp 44.7 kW
Fuel & Capacities
Diesel
Transmission
5 forward and 1 reverse

Barreiros R-500 B Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

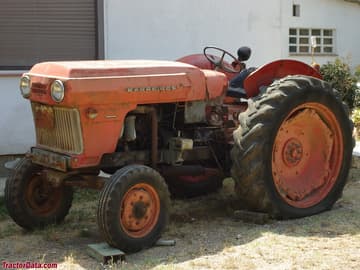

Barreiros R-500 B tractor photo
1967 - 1969
1967 - 1969
Production
Manufacturer
Barreiros
Barreiros R-500 B Engine
Barreiros 3.3L 4-cyl diesel
Engine details ...
Barreiros R-500 B Transmission
5-speed
Transmission details ...
Barreiros R-500 B Power
Engine
60 hp 44.7 kW
Mechanical
Two-wheel drive
Open operator station.
Dimensions & Tires
Front tire
6-16
Rear tire
12-36
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
generator
Battery volts
12

Engine

Engine Detail — 203.8 ci / 3.3 L Diesel

Manufacturer
Barreiros A60
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
203.8 ci 3.3 L
Power
60 hp 44.7 kW
Rated RPM
3.60x5.00
Firing order
1-3-4-2
Starter volts
12
Intake valve clearance
0.010 inches (hot) 0.254 mm
Exhaust valve clearance
0.010 inches (hot) 0.254 mm

Transmission

Transmission — 5 forward and 1 reverse

Gears
5 forward and 1 reverse

Dimensions

Barreiros R-500 B Tires
Ag front
6-16
Ag rear
12-36
Dimensions

Photos

Barreiros R-500 B

Barreiros R-500 B

Barreiros R500B with hood open

Barreiros R500B with hood open
