Belarus 500
The Belarus 500 is a tractor produced by Belarus. It is equipped with a 289.8 ci 4.7 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW. Transmission: sliding gear. Operating weight: 6100 lbs 2766 kg.
Overview
 | 1978 - 1981 |
|---|
Production | |
|---|---|
Manufacturer | Belarus |
Built in Minsk, Belarus | |
Variants | |
|---|---|
500 | 2WD |
520 | 4WD |
Belarus 500 Engine | |
|---|---|
Belarus 4.7L 4-cyl diesel | |
Engine details ...  |
Belarus 500 Transmission | |
|---|---|
9-speed | |
Transmission details ...  |
Belarus 500 Power | |
|---|---|
Engine | 65 hp
48.5 kW |
PTO (claimed) | 58 hp
43.3 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 34 gal
128.7 L |
Hydraulic system | 5.4 gal
20.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.4 gal
20.4 L |
Valves | 2 |
Pump flow | 11.8 gpm
44.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 3320 lbs
1505 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 6100 lbs
2766 kg |
Front tire | 9.00-20 |
Rear tire | 15.5-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 289.8 ci / 4.7 L Diesel
Manufacturer | Belarus |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 289.8 ci
4.7 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 65 hp
48.5 kW |
Rated RPM | 1800 |
Coolant capacity | 21.6 qts
20.4 L |
Transmission
Transmission — sliding gear
Transmission | sliding gear |
Gears | 9 forward and 2 reverse |
Dimensions
Belarus 500 Tires | |
|---|---|
Ag front | 9.00-20 |
Ag rear | 15.5-38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 6100 lbs
2766 kg |
Photos

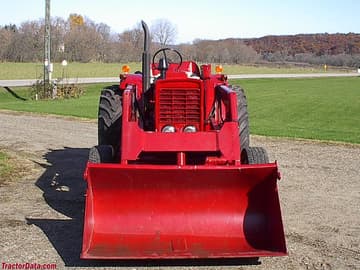

Belarus 500 with front-end loader.
Belarus 500 with front-end loader.
Belarus 500 with front-end loader.
Belarus 500 with front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Belarus 500 based on its 65 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Belarus 500.
Estimated Continuous Field Runtime: 10.1 hrs
Approximately 10.1 hours of continuous field operation at ~75% rated power on a full tank (34 gal / 128.7 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Belarus 500 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Belarus 500.
Converted Equivalents:
Direct Competitor Comparison
Compare Belarus 500 against same-era industry alternatives in the same horsepower class.
Belarus 500
