Belarus 505
The Belarus 505 is a tractor produced by Belarus. It is equipped with a 290 ci 4.8 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW. Transmission: 9 forward and 2 reverse. Operating weight: 7980 lbs 3619 kg.
Engine Power
Diesel (listed): 65 hp / 48.5 kW
Fuel & Capacities
34 gal
128.7 L
Transmission
9 forward and 2 reverse
Operating Weight
7980 lbs
3619 kg
Overview
 | 1983 - 1990
Progress Series |
|---|
Production | |
|---|---|
Manufacturer | Belarus |
Built in Minsk, Belarus | |
Variants | |
|---|---|
525 | 4WD |
Belarus 505 Engine | |
|---|---|
MTZ 4.8L 4-cyl diesel | |
Engine details ...  |
Belarus 505 Transmission | |
|---|---|
9-speed unsynchronized | |
Transmission details ...  |
Belarus 505 Power | |
|---|---|
Engine | 65 hp
48.5 kW |
PTO (claimed) | 59 hp
44.0 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Mechanical disc brakes |
Capacity | |
|---|---|
Fuel | 34 gal
128.7 L |
Hydraulic system | 4.5 gal
17.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4.5 gal
17.0 L |
Pressure | 2850 psi
196.5 bar |
Valves | 2 |
Pump flow | 9 gpm
34.1 lpm |
Steering flow | 5.5 gpm
20.8 lpm |
Steering press. | 1500 psi
103.4 bar |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 3325 lbs
1508 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/ground |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 7980 lbs
3619 kg |
Front tire | 7.50-20 |
Rear tire | 15.5-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Batteries | 2 |
Battery CCA | 900 |
Battery volts | 6 |
References | |
|---|---|
 | |
Operators Manual 500 Series, 800 Series and 900 Series Tractors (904805) published in 1992 |
Engine
Engine Detail — 290 ci / 4.8 L Diesel
Manufacturer | MTZ D-60 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 290 ci
4.8 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 65 hp
48.5 kW |
Air cleaner | oil bath |
Compression | 16:1 |
Rated RPM | 1800 |
Torque | 197 lb-ft
267.1 Nm |
Torque RPM | 1300 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Coolant capacity | 21 qts
19.9 L |
Intake valve clearance | 0.012 inches
0.305 mm |
Exhaust valve clearance | 0.012 inches
0.305 mm |
Oil capacity | 16 qts
15.1 L |
Transmission

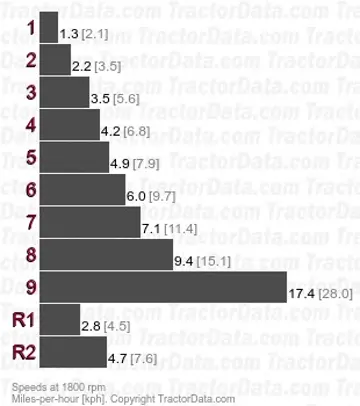

Transmission — 9 forward and 2 reverse unsynchronized
Type | unsynchronized |
Gears | 9 forward and 2 reverse |
Oil capacity | 42 qts
39.7 L |
Oil type | SAE 80-90 or 90 GL-5 |
Tractor must be stopped and clutch used to change gears or ranges. With the shift lever in neutral and clutch pressed, a knob on top can be rotated to select range, then the lever can be moved to select the gear. | |
15.8x38 rear tires. | |
 | |
Dimensions
Belarus 505 Tires | |
|---|---|
Ag front | 7.50-20 |
Ag rear | 15.5-38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Length | 152 inches
386 cm |
Height (hood) | 64.75 inches
164 cm |
Height (ROPS) | 106.75 inches
271 cm |
Shipping weight | 7980 lbs
3619 kg |
Max weight | 12000 lbs
5443 kg |
Clearance (front axle) | 17.5 inches
44 cm |
Clearance (rear axle) | 21.5 inches
54 cm |
Clearance (drawbar) | 12 inches
30 cm |

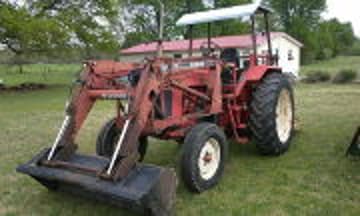

Photos

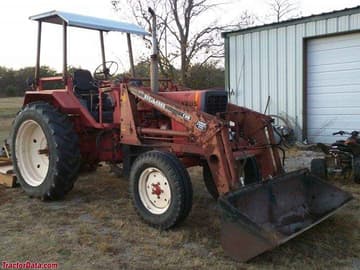

Belarus 505
Belarus 505
Recommended Implements & Sizing Guide
Engineering recommendations for Belarus 505 based on its 65 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Belarus 505.
Estimated Continuous Field Runtime: 10.1 hrs
Approximately 10.1 hours of continuous field operation at ~75% rated power on a full tank (34 gal / 128.7 L).
Estimated 75% Load Fuel Burn~3.4 gal/hr (12.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Belarus 505 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Belarus 505.
Converted Equivalents:
Horsepower (HP)65 hp
Kilowatts (kW)48.5 kW
Metric Horsepower (PS / CV)65.9 PS
Direct Competitor Comparison
Compare Belarus 505 against same-era industry alternatives in the same horsepower class.
Current Model
Belarus
Belarus 505
Engine Power:Diesel (listed): 65 hp / 48.5 kW
★ Baseline Reference
