belarus 5260
 | 1996
5200 Series | 1996 | 5200 Series |
|---|---|---|---|
1996 | |||
5200 Series | |||
1996 | |
|---|---|
5200 Series |
Production | |
|---|---|
Manufacturer | Belarus |
Belarus 5260 Engine | |
|---|---|
Belarus 4.8L 4-cyl diesel | |
Engine details ...  |
Belarus 5260 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Belarus 5260 Power | |
|---|---|
PTO (claimed) | 65 hp
48.5 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | hydraulic rear lock |
Steering | hydrostatic power |
Mechanical dry disc brakes | |
Four-post ROPS. Cab optional. | |
Photos | |
|---|---|
 | |

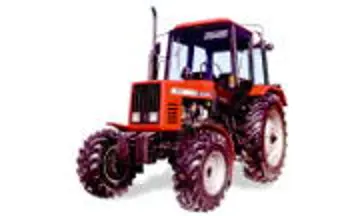

Belarus 5260 photos...  |
Capacity | |
|---|---|
Fuel | 28.6 gal
108.3 L |
Hydraulic system | 4.8 gal
18.2 L |
Hydraulics | |
|---|---|
Type | live open center |
Capacity | 4.8 gal
18.2 L |
Pressure | 2800 psi
193.1 bar |
Valves | 2 |
Pump flow | 9.9 gpm
37.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 4400 lbs
1995 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.4 inches
244 cm |
Weight | 6710 to 7870 pounds |
Front tire | 9.0x20 |
Rear tire | 15.5x38 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Batteries | 2 |
Battery volts | 12 |
