Belarus 572

The Belarus 572 is a tractor produced by Belarus. It is equipped with a 290 ci 4.8 L engine. The rated power output is 65 hp 48.5 kW. Transmission: 9 forward and 2 reverse. Operating weight: 9146 lbs 4148 kg.

Overview

	1992 - 1996	1992 - 1996

Production
Manufacturer	Belarus
Built in Minsk, Belarus
Original price was $19,000 in 1996

Variants
570	2WD
572	4WD

Belarus 572 Engine
Belarus 4.8L 4-cyl diesel
Engine details ...

Belarus 572 Power
Engine	65 hp 48.5 kW
Drawbar (tested)	53.49 hp 39.9 kW
PTO (tested)	61.24 hp 45.7 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Differential mechanical dry disc brakes
Cab with heat.

Capacity
Fuel	34.3 gal 129.8 L
Hydraulic system	5.4 gal 20.4 L

Hydraulics
Type	open center
Capacity	5.4 gal 20.4 L
Valves	2
Total flow	10.2 gpm 38.6 lpm

Tractor hitch
Rear Type	II
Rear lift	4366 lbs 1980 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	96.5 inches 245 cm
Weight	9146 lbs 4148 kg
Front tire	11.2-20
Rear tire	15.5-38
Full dimensions and tires ...

References
Operators Manual 500 Series, 800 Series and 900 Series Tractors (904805) published in 1992
Trattori published by Belarus

Engine

Engine Detail — 290 ci / 4.8 L Diesel

Manufacturer	Belarus D-242
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	290 ci 4.8 L
Bore/Stroke	4.33x4.92 inches 110 x 125 mm
Power	65 hp 48.5 kW
Compression	16:1
Rated RPM	1800
Starter volts	24
Coolant capacity	21.08 qts 20.0 L

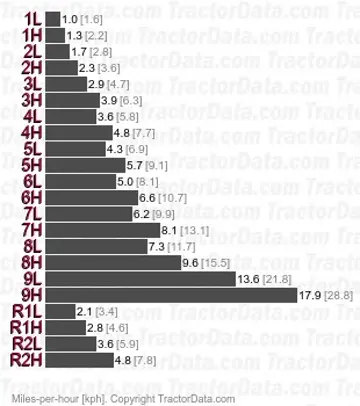

Transmission

Transmission options
18-speed
9-speed

Transmission — 18 forward and 4 reverse

Gears	18 forward and 4 reverse

Transmission — 9 forward and 2 reverse

Gears

9 forward and 2 reverse

Dimensions

Belarus 572 Tires
Ag front	11.2-20
Ag rear	15.5-38

Dimensions
Wheelbase	96.5 inches 245 cm
Length	154.7 inches 392 cm
Width	77.6 inches 197 cm
Height (cab)	110.2 inches 279 cm
Operating weight	9146 lbs 4148 kg
Ballasted weight	10426 lbs 4729 kg

Tests

Nebraska Tractor Test 1655
Diesel 18-speed 4WD October 16 - 25, 1991 Link: Nebraska Tractor Test 1655 file
PTO performance
Power at rated engine speed	61.24 hp 45.7 kW
Fuel use	3.6 gal/hour 13.6 l/hour
Power at rated PTO speed	59.41 hp 44.3 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Drawbar performance
Max power	53.49 hp 39.9 kW
Fuel use	3.5 gal/hour 13.2 l/hour
Gear 5H used for power test.
Max pull	9,321 lbs 4228 kg
Gear 2H used for pull test.

Photos

Belarus 572
