Big Bud 370

The Big Bud 370 is a tractor produced by Big Bud. It is equipped with a 674 ci 11.0 L engine. The rated power output is 370 hp 275.9 kW. Transmission: 12 forward and 2 reverse. Drive type: 4x4 4WD. Operating weight: 41,200 lbs 18688 kg.

Engine Power
370 hp 275.9 kW
Drive & Traction
4x4 4WD
Transmission
12 forward and 2 reverse
Operating Weight
41,200 lbs 18688 kg

Big Bud 370 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Big Bud 370 tractor photo
1986 - 1989 4 SeriesFour-wheel Drive (4WD) tractor
1986 - 1989
4 Series
Four-wheel Drive (4WD) tractor
Production
Manufacturer
Big Bud
Four-wheel Drive (4WD) tractor
Built in Havre, Montana, USA
Total built
2
Big Bud 370 Engine
Komatsu 11.0L 6-cyl diesel
Engine details ...
Big Bud 370 Transmission
12-speed full power shift
Transmission details ...
Big Bud 370 Power
Engine
370 hp 275.9 kW
Mechanical
Drive
4x4 4WD
Steering
hydrostatic power
Cab standard.
Dimensions & Tires
Weight
41,200 lbs 18688 kg
Full dimensions and tires ...
Electrical
Ground
negative

Engine

Engine Detail — 674 ci / 11.0 L Diesel

Manufacturer
Komatsu ST1079
Configuration
turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement
674 ci 11.0 L
Bore/Stroke
4.92x5.91 inches 125 x 150 mm
Power
370 hp 275.9 kW
Rated RPM
2100
Starter type
electric

Transmission

Transmission — 12 forward and 2 reverse full power shift

Type
full power shift
Gears
12 forward and 2 reverse

Dimensions

Big Bud 370 Tires
Dimensions
Weight
41,200 lbs 18688 kg

Photos

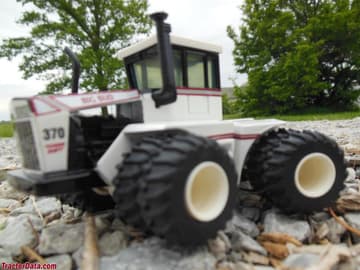

Scale model of a Big Bud 370.

Scale model of a Big Bud 370.
