Bolens 1050

The Bolens 1050 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 361 cc 22.05 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW; Gasoline (listed): 10 hp / 7.5 kW. Transmission: 6 forward and 2 reverse. Operating weight: 645 lbs 292 kg.

Overview

	1966 - 1969 Tube Frame SeriesGarden tractor Tube Frame Series Garden tractor

Production
Manufacturer	Bolens
Garden tractor
Original price was $888 in 1965
The Bolens 1050 carried model codes 192-01 (for 1966) and 192-02 (1967-1969).

Bolens 1050 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	manual locking hub
Steering	manual
Open operator station.

Dimensions & Tires
Wheelbase	43 inches 109 cm
Weight	645 lbs 292 kg
Front tire	16x6.50-8
Rear tire	8x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Outdoor Power Equipment published in 1966, by Bolens
Husky Tractors published in 1966, by Bolens
Husky Tractors published in 1967, by Bolens
Outdoor Power Equipment published in 1967, by Bolens
Husky Tractors published in 1968, by Bolens
Outdoor Power Equipment published in 1968, by Bolens
Husky Tractors published in 1969, by Bolens

Engine

Engine options
10HP Wisconsin 331cc 1-cyl gasoline
10HP Wisconsin 361cc 1-cyl gasoline

Engine Detail — 331 cc / 20.2 ci Gasoline

Manufacturer	Wisconsin TR-10D
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
The Wisconsin TR-10D was used in the Bolen 1050 only during the first production year, 1966. Tractors with the TR-10D carried model code 192-01.
Displacement	331 cc 20.2 ci
Bore/Stroke	3.125x2.625 inches 79 x 67 mm
Power	10 hp 7.5 kW
Air cleaner	dry
Rated RPM	3800
Starter volts	12
Oil capacity	1 qts 0.9 L
Oil change	50 h
Sparkplug gap	0.025 inches 0.635 mm

Engine Detail — 361 cc / 22.05 ci Gasoline

Manufacturer	Wisconsin TRA-10D
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
The Wisconsin TRA-10D was used in the Bolen 1050 starting with the 1967 production year and model code 192-02, and continued to the end of production.
Displacement	361 cc 22.05 ci
Bore/Stroke	3.125x2.875 inches 79 x 73 mm
Power	10 hp 7.5 kW
Air cleaner	dry
Rated RPM	3800
Starter volts	12
Oil capacity	1 qts 0.9 L
Oil change	50 h
Sparkplug gap	0.025 inches 0.635 mm

Transmission

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Three gears, plus reverse, in two ranges. Tractor must be stopped and clutch/brake pedal depressed to shift.

Dimensions

Bolens 1050 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	8x8.50-12

Dimensions
Wheelbase	43 inches 109 cm
Length	63 inches 160 cm
Width	34 inches 86 cm
Height	40 inches 101 cm
Shipping weight	645 lbs 292 kg
Ground clearance	7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Bolens
Cutting width	42 inches 106 cm

Photos

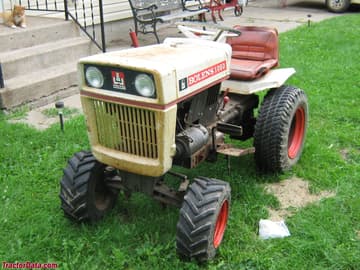

Bolens 1050, left side.

Bolens 1050 with mower deck, right side.

Bolens 1050 with front blade.

Bolens 1050 with snowblower and cab.
