Bolens 1054
The Bolens 1054 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 361 cc 22.05 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: Bolens. Operating weight: 645 lbs 292 kg.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
Bolens
Operating Weight
645 lbs
292 kg
Overview
 | 1971 - 1972
Tube Frame SeriesGarden tractor
Tube Frame Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Bolens 1054 Engine | |
|---|---|
10HP Wisconsin 361cc 1-cyl gasoline | |
Engine details ...  |
Bolens 1054 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station | |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 645 lbs
292 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Big tractor published in 1971, by Bolens |
Engine
Engine Detail — 361 cc / 22.05 ci Gasoline
Manufacturer | Wisconsin TRA-10D |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 361 cc
22.05 ci |
Bore/Stroke | 3.125x2.875 inches
79 x 73 mm |
Power | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Bolens
Transmission | Bolens |
Type | gear |
Gears | 6 forward and 2 reverse |
Dimensions
Bolens 1054 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 63 inches
160 cm |
Width | 34 inches
86 cm |
Height | 40 inches
101 cm |
Shipping weight | 645 lbs
292 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
42" Mower deck | |
|---|---|
Type | mid-mount Bolens |
3-blade | |
Cutting width | 42 inches
106 cm |
Photos

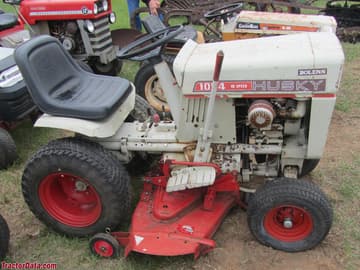

Bolens 1054
Bolens 1054
Bolens 1054 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 1054.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 1054 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 1054.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
