Bolens 8725 Suburban
The Bolens 8725 Suburban is a tractor produced by Bolens Lawn Tractors. It is equipped with a 170 cc 10.4 ci engine. The listed engine power is Gasoline (listed): 4 hp / 3.0 kW. Transmission: 1 forward and reverse.
Engine Power
Gasoline (listed): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Overview
 | 1966 - 1969
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Riding lawn mower | |
Bolens 8725 Engine | |
|---|---|
4HP Briggs & Stratton 170cc 1-cyl gasoline | |
Engine details ...  |
Bolens 8725 Transmission | |
|---|---|
1-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 1966, by Bolens | |
Outdoor Power Equipment published in 1967, by Bolens | |
Suburban Riding Mowers - Oribt-Air Mowers - Mustang Tillers published in 1967, by Bolens |
Engine
Engine Detail — 170 cc / 10.4 ci Gasoline
Manufacturer | Briggs & Stratton 100902 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 170 cc
10.4 ci |
Bore/Stroke | 2.50x2.125 inches
64 x 54 mm |
Power | 4 hp
3.0 kW |
Starter type | manual |
Transmission
Transmission — 1 forward and reverse
Gears | 1 forward and reverse |
Dimensions
Bolens 8725 Tires |
|---|
Dimensions | |
|---|---|
Length | 41 inches
104 cm |
Width | 25 inches
63 cm |
Height | 33 inches
83 cm |
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Bolens |
1-blade | |
Cutting width | 24 inches
60 cm |
Cut height | 1.5 to 2.5 inch
3 to 6 cm |
Photos

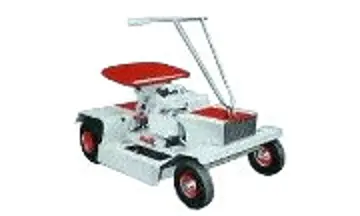

Bolens 8725 Suburban tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 8725 Suburban.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 8725 Suburban Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 8725 Suburban.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
