branson 4520c
 | 2012 - 2021
20C SeriesCompact Utility tractor | 2012 - 2021 | 20C Series | Compact Utility tractor |
|---|---|---|---|---|
2012 - 2021 | ||||
20C Series | ||||
Compact Utility tractor | ||||
2012 - 2021 | |
|---|---|
20C Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Branson (a part of TYM) |
Compact Utility tractor | |
Variants | |
|---|---|
4520R | ROPS |
4520C | Cab |
Branson 4520C Engine | |
|---|---|
Kukje 2.3L 4-cyl diesel | |
Fuel tank | 9.3 gal
35.2 L |
Engine details ...  | |
Branson 4520C Transmission | |
|---|---|
12-speed syncro shuttle | |
Transmission details ...  |
Branson 4520C Power | |
|---|---|
Engine | 47 hp
35.0 kW |
PTO (claimed) | 42 hp
31.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard. | |
Hydraulics | |
|---|---|
Type | open center |
Mid valves | 2 |
Pump flow | 11.1 gpm
42.0 lpm |
Steering flow | 5 gpm
18.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift | 3306 lbs
1499 kg |
Rear Arms | telescopic lower arms |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/790 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Weight | 4118 lbs
1867 kg |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Branson 4520C attachments | |
|---|---|
front-end loader | |
backhoe | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

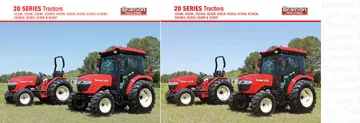

References | |
|---|---|
 | |
20 Series Tractors published in 2015, by Branson | |
20 Series Tractors published in 2018, by Branson |
