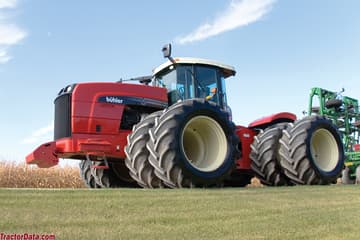

buhler versatile 485
 | 2004 - 2008
HHT SeriesFour-wheel Drive (4WD) tractor | 2004 - 2008 | HHT Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
2004 - 2008 | ||||
HHT Series | ||||
Four-wheel Drive (4WD) tractor | ||||
2004 - 2008 | |
|---|---|
HHT Series | |
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | Buhler Versatile |
Four-wheel Drive (4WD) tractor | |
Built in Winnipeg, Manitoba, Canada | |
Buhler Versatile 485 Engine | |
|---|---|
Cummins 15.0L 6-cyl diesel | |
Engine details ...  |
Buhler Versatile 485 Transmissions | |
|---|---|
12-speed | |
16-speed | |
Transmission details ...  |
Buhler Versatile 485 Power | |
|---|---|
Engine | 485 hp
361.7 kW |
Mechanical | |
|---|---|
Dual dry caliper brakes | |
Cab standard with heat and A/C |
Photos | |
|---|---|
 | |
Buhler Versatile 485 photos...  |
Capacity | |
|---|---|
Fuel | 350 gal
1324.8 L |
Hydraulic system | 30 gal
113.6 L |
Hydraulics | |
|---|---|
Type | closed center load sensing |
Capacity | 30 gal
113.6 L |
Pressure | 2900 psi
200.0 bar |
Valves | 4 to 8 |
Total flow | 55 gpm
208.2 lpm |
| 80 gpm (optional HydraFlow)
302.8 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | optional |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 154 inches
391 cm |
Weight | 42,000 lbs
19051 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 160 |
Batteries | 3 |
Battery CCA | 950 |
Battery volts | 12 |
