Bukh 452

The Bukh 452 is a tractor produced by Bukh. It is equipped with a 206.1 ci 3.4 L engine. The rated power output is 55 hp 41.0 kW. Transmission: 8 forward and 4 reverse. Operating weight: 5200 lbs 2358 kg.

Overview

	1960 - 1967 Utility tractor
1960 - 1967
Utility tractor

Production
Manufacturer	Bukh
Utility tractor
Built in Denmark

Bukh 452 Transmission
8-speed gear
Transmission details ...

Bukh 452 Power
Engine	55 hp 41.0 kW
PTO (claimed)	43 hp 32.1 kW

Mechanical
Two-wheel drive
Open operator station.

Capacity
Fuel	12.9 gal 48.8 L
Hydraulic system	3.7 gal 14.0 L

Hydraulics
Capacity	3.7 gal 14.0 L
Pump flow	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1775
	1000@1855

Dimensions & Tires
Weight	5200 lbs 2358 kg
Full dimensions and tires ...

Belt Pulley
Diameter	8.7 inches 22 cm
Width	5.9 inches 14 cm
RPM	1825

References
The Quality Tractor published by Bukh

Engine

Engine options
Bukh 3.1L 3-cyl diesel
Bukh 3.4L 3-cyl diesel

Engine Detail — 186.9 ci / 3.1 L Diesel

Manufacturer	Bukh 3EV100
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	186.9 ci 3.1 L
Bore/Stroke	3.937x5.118 inches 100 x 130 mm
Power	45 hp 33.6 kW
Rated RPM	1800
Starter	electric
Starter volts	12
Oil capacity	12.7 qts 12.0 L
Coolant capacity	26.4 qts 25.0 L

Engine Detail — 206.1 ci / 3.4 L Diesel

Manufacturer	Bukh 3G105
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
The 3G105 replaced the 3EV100 as the engine for the 452 in 1961.
Displacement	206.1 ci 3.4 L
Bore/Stroke	4.134x5.118 inches 105 x 130 mm
Power	55 hp 41.0 kW
Rated RPM	2000
Oil capacity	12.7 qts 12.0 L
Coolant capacity	26.4 qts 25.0 L

Transmission

Transmission — 8 forward and 4 reverse gear

Type	gear
Gears	8 forward and 4 reverse
Oil capacity	23.3 qts 22.1 L
Four gears in two ranges, plus reverse range.

Dimensions

Bukh 452 Tires

Dimensions
Weight	5200 lbs 2358 kg

Photos

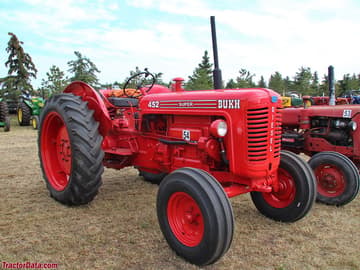

Bukh 452 Super.
