Burns B-60 Suburban
The Burns B-60 Suburban is a tractor produced by Burns Lawn Tractors. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: Peerless 1200.
Engine Power
Gasoline (listed): 6 hp / 4.5 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 1200
Overview
 | 1962 - 1964
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Burns |
Garden tractor | |
Built in Louisville, Georgia, USA | |
Original price was $515 in 1963 | |
Variants | |
|---|---|
B-60 | recoil start |
B-60-E | electric start |
Burns B-60 Engine | |
|---|---|
6HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Burns B-60 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power | 6 hp
4.5 kW |
Starter type | manual recoil |
Transmission
Transmission — Peerless 1200
Transmission | Peerless 1200 |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Clutch | idler pulley |
Dimensions
Burns B-60 Tires | |
|---|---|
Ag front | 4.80x4-8 |
Ag rear | 23x6-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 60 inches
152 cm |
Width | 36 inches
91 cm |
Height (hood) | 32 inches
81 cm |
Front tread | 30 inches
76 cm |
Rear tread | 30 inches
76 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
36" Mower deck | |
|---|---|
Type | mid-mount Burns |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

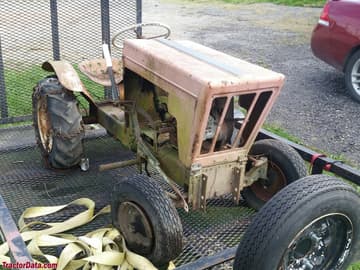

Burns B-60 Suburban
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Burns Lawn Tractors Burns B-60 Suburban.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Burns Lawn Tractors Burns B-60 Suburban Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Burns Lawn Tractors Burns B-60 Suburban.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
