Bush Hog HD-10
The Bush Hog HD-10 is a tractor produced by Bush Hog Lawn Tractors. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: infinite forward and reverse. Operating weight: 800 lbs 362 kg.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
infinite forward and reverse
Operating Weight
800 lbs
362 kg
Overview
 | 1966 - 1967
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bush Hog |
Garden tractor | |
Built in Galesburg, Kansas, USA | |
The Bush Hog HD-10 was also sold as the model H-10. | |
Variants | |
|---|---|
HW-10 | turf tires |
Bush Hog HD-10 Engine | |
|---|---|
10HP Tecumseh 1-cyl gasoline | |
Engine details ...  |
Bush Hog HD-10 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 800 lbs
362 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Little Giants published in 1966, by Bush Hog |
Engine
Engine Detail — Gasoline
Manufacturer | Tecumseh |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Power | 10 hp
7.5 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Bush Hog HD-10 Tires |
|---|
Dimensions | |
|---|---|
Length | 81 inches
205 cm |
Width | 41 inches
104 cm |
Weight | 800 lbs
362 kg |
Ground clearance | 10 inches
25 cm |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
42" mid-mount mower deck | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

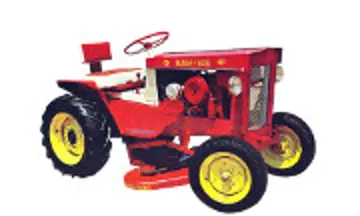

Bush Hog HD-10 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bush Hog Lawn Tractors Bush Hog HD-10.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bush Hog Lawn Tractors Bush Hog HD-10 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bush Hog Lawn Tractors Bush Hog HD-10.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
