Bush Hog JB-1
The Bush Hog JB-1 is a tractor produced by Bush Hog Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 1008 lbs 457 kg.
Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
infinite forward and reverse
Operating Weight
1008 lbs
457 kg
Overview
 | 1969 - 1972
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bush Hog |
Garden tractor | |
Built in Galesburg, Kansas, USA | |
Bush Hog JB-1 Engine | |
|---|---|
14HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Bush Hog JB-1 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 56 inches
142 cm |
Weight | 1008 lbs
457 kg |
Front tire | 18x8.50-8 |
Rear tire | 26x12.00-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 531 cc / 32.4 ci Gasoline
Manufacturer | Briggs & Stratton 320000 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 531 cc
32.4 ci |
Bore/Stroke | 3.56x3.25 inches
90 x 83 mm |
Power | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Bush Hog JB-1 Tires | |
|---|---|
Lawn/turf front | 18x8.50-8 |
Lawn/turf rear | 26x12.00-12 |
Dimensions | |
|---|---|
Wheelbase | 56 inches
142 cm |
Length | 86 inches
218 cm |
Width | 49 inches
124 cm |
Height | 48 inches
121 cm |
Weight | 1008 lbs
457 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

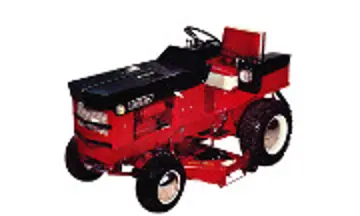

Bush Hog JB-1 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bush Hog Lawn Tractors Bush Hog JB-1.
Estimated Continuous Field Runtime: 4.1 hrs
Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bush Hog Lawn Tractors Bush Hog JB-1 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bush Hog Lawn Tractors Bush Hog JB-1.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
