bush hog lawn tractors v4 6

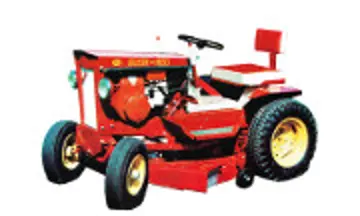

Bush Hog V4-6 tractor photo
1965 - 1968 Garden tractor
1965 - 1968
Garden tractor
1965 - 1968
Garden tractor
1965 - 1968
Garden tractor
Production
Manufacturer
Bush Hog
Garden tractor
Built in Galesburg, Kansas, USA
Variants
VR4-6
manual start
VE4-6
electric start
Bush Hog V4-6 Engine
6HP Tecumseh 221cc 1-cyl gasoline
Fuel tank
1 gal 3.8 L
Engine details ...
Bush Hog V4-6 Transmission
4-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual idler pulley
Dimensions & Tires
Wheelbase
49 inches 124 cm
Weight
640 lbs 290 kg
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Bush Hog V4-6 attachments
32" mid-mount mower deck
blade
Attachment details ...
Electrical
Ground
negative
Battery volts
12
References

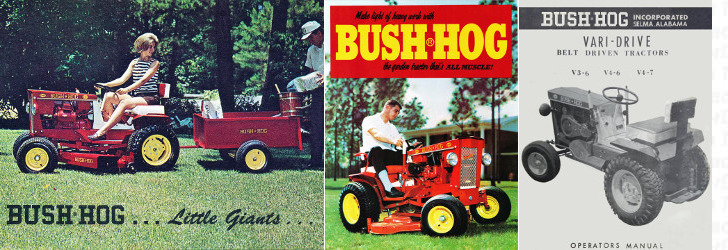

V4-6 references literature
Little Giants published in 1966, by Bush Hog
The garden tractor that's all muscle published in 1966, by Bush Hog
Operator's Manual Vari-Drive Belt Driven Tractors published in 1965
