CaseIH 385

The CaseIH 385 is a tractor produced by Caseih. It is equipped with a 155 ci 2.5 L engine. The rated power output is 43 hp 32.1 kW. Transmission: 8 forward and reverse. Operating weight: 4869 to 5940 pounds.

Overview

	1985 - 1990 85 Utility SeriesUtility tractor
1985 - 1990
85 Utility Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price was $14,000 in 1990

CaseIH 385 Engine
CaseIH 2.5L 3-cyl diesel
Engine details ...

CaseIH 385 Power
Engine	43 hp 32.1 kW
PTO (claimed)	35 hp 26.1 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS. Optional canopy. Optional deluxe canopy with lights and radio wiring.

Capacity
Fuel	20 gal 75.7 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Type	open center
Capacity	9 gal 34.1 L
Pressure	2500 psi 172.4 bar
Valves	0 to 2
Total flow	14.3 gpm 54.1 lpm
Steering flow	2.5 gpm 9.5 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	2,158 lbs 978 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	79.6 inches 202 cm
Weight	4869 to 5940 pounds
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	45
Battery volts	12
Battery AH	93

References
Model 385 Tractor published in 1991, by CaseIH
85 Series published in 1985, by CaseIH
1985 Farm Equipment Buyer's Guide published by CaseIH

Engine

Engine Detail — 155 ci / 2.5 L Diesel

Manufacturer	CaseIH D-155
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	155 ci 2.5 L
Bore/Stroke	3.8x4.3 inches 97 x 109 mm
Power	43 hp 32.1 kW
Air cleaner	dry type with safety element
Pre-heating	ether injection
Compression	16:1
Rated RPM	2200
Idle RPM	700-2400
Torque	119 lb-ft 161.4 Nm
Torque RPM	1650
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	12 qts 11.4 L

Transmission

Transmission options
8-speed synchromesh
16-speed partial power shift
8-speed power shuttle

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Four gears within each of high, low, and reverse ranges. Synchronized shifts within forward ranges.
With 13.6x28 rear tires.

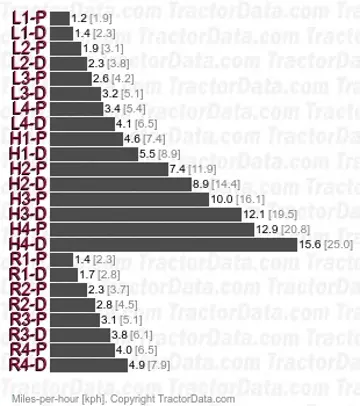

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Four gears within each of high, low, and reverse ranges. Power shift between direct and lower speed for each gear.
With 13.6x28 rear tires.

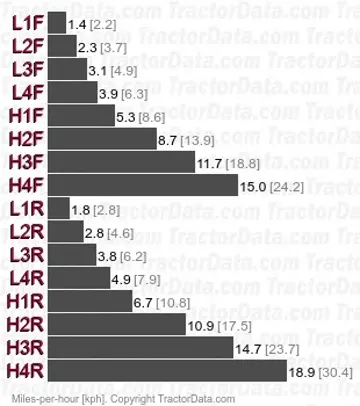

Transmission — 8 forward and reverse power shuttle

Type	power shuttle
Gears	8 forward and reverse
Four gears within each of high and low ranges. Power shift direction change between forward and reverse.
With 14.9x24 rear tires.

Dimensions

CaseIH 385 Tires
Ag front	6.00-16 (2WD)
	8.3x24 (4WD)
Ag rear	13.6-28 (2WD)
	14.9x28 (4WD)
Ag front	7.50x16
	9.5x15
Ag rear	14.9x24
	14.9x28
	16.9x24
	16.9x28
	18.4x16.1

Dimensions
Wheelbase	79.6 inches 202 cm

CaseIH 385 Weight
Shipping	4929 lbs (utility) 2235 kg
	4869 lbs (low profile) 2208 kg
	5940 lbs (4WD) 2694 kg

Photos

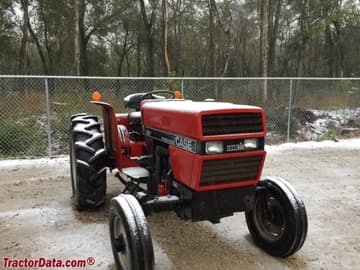

CaseIH 385
