CaseIH 395

The CaseIH 395 is a tractor produced by Caseih. It is equipped with a 155 ci 2.5 L engine. The listed engine power is Diesel (net): 43 hp / 32.1 kW; Diesel (gross): 46 hp / 34.3 kW. Transmission: 16 forward and 8 reverse. Operating weight: 4869 to 5940 pounds.

Overview

	1991 - 1993 95 Utility SeriesUtility tractor 95 Utility Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Original price was $17,000 in 1993

CaseIH 395 Engine
Case International 2.5L 3-cyl diesel
Engine details ...

CaseIH 395 Power
Engine (gross)	46 hp 34.3 kW
Engine (net)	43 hp 32.1 kW
PTO (claimed)	35 hp 26.1 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS standard. Optional ROPS canopy or deluxe canopy with lights and wiring for radio.

Capacity
Fuel	20 gal 75.7 L
Hydraulic system	9 gal 34.1 L

Hydraulics
Type	open center
Capacity	9 gal 34.1 L
Pressure	2500 psi 172.4 bar
Valves	1 or 2
Pump flow	14.3 gpm 54.1 lpm
	16.4 gpmOptOptional 62.1 lpm
Steering flow	3 gpm 11.4 lpm

Tractor hitch
Rear Type	I/II
Rear lift (at 24"/610mm)	2160 lbs 979 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	79.8 inches 202 cm
	83.2 inches (4WD) 211 cm
	73.7 inches (swept-back axle) 187 cm
Weight	4869 to 5940 pounds
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
	65 OptOptional
Battery CCA	650
Battery volts	12

References
Model 395 Tractor published in 1992, by CaseIH
95 Series Tractors published in 1990, by CaseIH

Engine

Engine Detail — 155 ci / 2.5 L Diesel

Manufacturer	Case International D-155
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	155 ci 2.5 L
Bore/Stroke	3.87x4.37 inches 98 x 111 mm
Power (net)	43 hp 32.1 kW
Power (gross)	46 hp 34.3 kW
Air cleaner	dry with safety element
Compression	16:1
Rated RPM	2200
Idle RPM	650-2430
Torque	119 lb-ft 161.4 Nm
Torque RPM	1650
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	12 qts 11.4 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial power shift
8-speed synchronized shuttle
16-speed creeper

Transmission — 8 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Oil capacity	36 qts 34.1 L
Four gears with high, low, and reverse ranges. Synchronized shifts within high and low ranges.
With 13.6x28 rear tires.

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Oil capacity	36 qts 34.1 L
Four gears with high, low, and reverse ranges. Power shift between direct and lower speed in each gear.
With 13.6x28 rear tires.

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Oil capacity	36 qts 34.1 L
Four gears each in high and low ranges, both forward and reverse.
With 13.6x28 rear tires.

Transmission — 16 forward and 8 reverse creeper

Type	creeper
Gears	16 forward and 8 reverse
Four gears with high, low, and reverse ranges plus direct or creeper mode.
With 13.6x28 rear tires.

Dimensions

CaseIH 395 Tires
Ag front	6.00-16 (2WD)
	8.3x24 (4WD)
Ag rear	13.6-28 (2WD)
	14.9x28 (4WD)
Ag front	7.50x16
	27x9.5-15
	9.5Lx15
	9.00x10
Ag rear	14.9x24
	16.9x24
	16.9x28
	18.4x16.1

Dimensions
Wheelbase	79.8 inches 202 cm
	83.2 inches (4WD) 211 cm
	73.7 inches (swept-back axle) 187 cm
Length	136 inches 345 cm
	138.3 inches (4WD) 351 cm
Width	66 inches (2WD) 167 cm
	73 inches (4WD) 185 cm
	82.8 inches (low-profile) 210 cm
Ground clearance	10 inches (4WD frame) 25 cm
	14.3 inches (2WD frame) 36 cm
	10.3 inches (low-profile frame) 26 cm

CaseIH 395 Weight
Shipping	4,929 lbs (utility) 2235 kg
	4,869 lbs (low profile) 2208 kg
	5,940 lbs (4WD) 2694 kg

CaseIH 395 Height
Hood	55 inches (2WD) 139 cm
	59.2 inches (4WD) 150 cm
	51 inches (low-profile) 129 cm
ROPS	93.5 inches (2WD) 237 cm
	94.4 inches (4WD) 239 cm
	88.9 inches (low-pofile) 225 cm

Attachments

Attachment overview
Case IH 2200 loader
Case IH 2250 loader

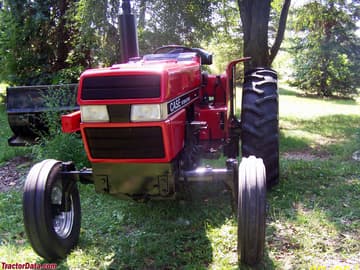

Photos
