CaseIH 9310
The CaseIH 9310 is a tractor produced by Caseih. It is equipped with a 505 ci 8.3 L engine. The listed engine power is Diesel (gross): 205 hp / 152.9 kW. Transmission: 12 forward and 3 reverse. Operating weight: 21026 lbs 9537 kg.
Engine Power
Diesel (gross): 205 hp / 152.9 kW
Fuel & Capacities
115 gal
435.3 L
Transmission
12 forward and 3 reverse
Operating Weight
21026 lbs
9537 kg
Overview
 | 1996 - 1999
9300 SeriesFour-wheel Drive (4WD) tractor
9300 Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $93,000 in 1999 | |
CaseIH 9310 Engine | |
|---|---|
CDC 8.3L 6-cyl diesel | |
Fuel tank | 115 gal
435.3 L |
Engine details ...  | |
CaseIH 9310 Transmission | |
|---|---|
12-speed full power shift | |
Transmission details ...  |
CaseIH 9310 Power | |
|---|---|
Engine (gross) | 205 hp
152.9 kW |
PTO (claimed) | 168 hp
125.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Articulated power steering | |
Hydraulic disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2900 psi
200.0 bar |
Valves | 4 |
Pump flow | 28 gpm
106.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift (at 24"/610mm) | 12750 lbs
5783 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 120 inches (row-crop)
304 cm |
120.4 inches (fixed)
305 cm | |
Weight | 21026 lbs
9537 kg |
Front tire | 18.4-38 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 125 |
Batteries | 2 |
Battery CCA | 625 |
Battery volts | 12 |
References | |
|---|---|
 | |
Steiger 9300 Series 4WDs published in 1996, by CaseIH | |
Product Insight: 9300 STEIGER vs. Agcostar 8360 & 8425 published in 1996 |
Engine
Engine Detail — 505 ci / 8.3 L Diesel
Manufacturer | CDC 6TA |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 505 ci
8.3 L |
Bore/Stroke | 4.49x5.31 inches
114 x 135 mm |
Power (gross) | 205 hp
152.9 kW |
Rated RPM | 2100 |
Idle RPM | 850-2310 |
Starter volts | 12 |
Oil capacity | 22.2 qts
21.0 L |
Oil change | 250 h |
Coolant capacity | 29.5 qts
27.9 L |
CaseIH 9310 Engine | |
|---|---|
 |
Transmission

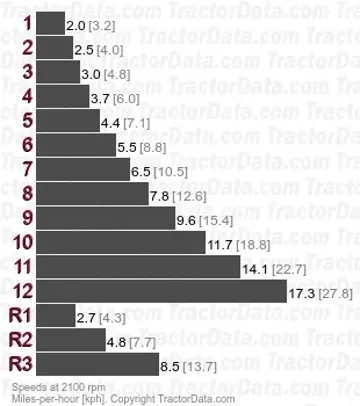

Transmission — 12 forward and 3 reverse full power shift
Type | full power shift |
Gears | 12 forward and 3 reverse |
 | |
Dimensions
CaseIH 9310 Tires | |
|---|---|
Ag front | 18.4-38 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 120 inches (row-crop)
304 cm |
120.4 inches (fixed)
305 cm | |
Length | 242 inches
614 cm |
Width | 88.9 inches*Width at fenders.
225 cm |
Height (exhaust) | 130.4 inches
331 cm |
Shipping weight | 21026 lbs*With 18.4x38 single wheels.
9537 kg |
Max weight | 26000 lbs
11793 kg |
Clearance (front axle) | 32.4 inches
82 cm |
Clearance (drawbar) | 19 inches
48 cm |
Front axle | Bar: 4 by 119.5 inches
101 by 3035 mm |
Bar rear axle | 4 by 119.5 inches
101 by 3035 mm |
Photos
CaseIH 9310 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 9310 based on its 205 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 9310.
Estimated Continuous Field Runtime: 10.8 hrs
Approximately 10.8 hours of continuous field operation at ~75% rated power on a full tank (115 gal / 435.3 L).
Estimated 75% Load Fuel Burn~10.7 gal/hr (40.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 9310 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 9310.
Converted Equivalents:
Horsepower (HP)205 hp
Kilowatts (kW)152.9 kW
Metric Horsepower (PS / CV)207.8 PS
