CaseIH Quadtrac 9370QT

The CaseIH Quadtrac 9370QT is a tractor produced by Caseih. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (listed): 360 hp / 268.5 kW. Transmission: 12 forward and 3 reverse. Drive type: crawler. Operating weight: 44000 lbs 19958 kg.

Engine Power

Diesel (listed): 360 hp / 268.5 kW

Drive & Traction

crawler

Fuel & Capacities

250 gal 946.2 L

Transmission

12 forward and 3 reverse

Operating Weight

44000 lbs 19958 kg

Overview

	1996 - 1999 9300 SeriesArticulated Crawler tractor 9300 Series Articulated Crawler tractor

Production
Manufacturer	CaseIH
Articulated Crawler tractor
Built in Fargo, North Dakota, USA
Original price was $190,000 in 1999

Variants
9370	wheeled tractor
9370QT	Quadtrac crawler

CaseIH 9370QT Engine
Cummins 14.0L 6-cyl diesel
Fuel tank	250 gal 946.2 L
Engine details ...

CaseIH 9370QT Transmission
12-speed full power shift
Transmission details ...

CaseIH 9370QT Power
Engine	360 hp 268.5 kW
PTO (claimed)	315 hp 234.9 kW

Mechanical
Drive	crawler
Articulated power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2900 psi 200.0 bar
Valves	4
Pump flow	27 gpm 102.2 lpm
Steering flow	31 gpm 117.3 lpm

Tractor hitch
Rear Type	IV
Rear lift (at 24"/610mm)	17000 lbs 7711 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tracks
Wheelbase	148 inches 375 cm
Weight	44000 lbs 19958 kg
30-inch tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	125
Batteries	3
Battery CCA	625
Battery volts	12

References

Steiger 9300 Series 4WDs published in 1996, by CaseIH
Quadtrac published in 1996, by CaseIH

Engine

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer	Cummins N14
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	855 ci 14.0 L
Bore/Stroke	5.50x6.00 inches 140 x 152 mm
Power	360 hp 268.5 kW
Compression	16.5:1
Rated RPM	2100
Idle RPM	850-2300
Starter	electric
Starter volts	12
Oil capacity	40.8 qts 38.6 L
Oil change	250 h
Coolant capacity	70 qts 66.2 L

CaseIH 9370QT Engine

Transmission

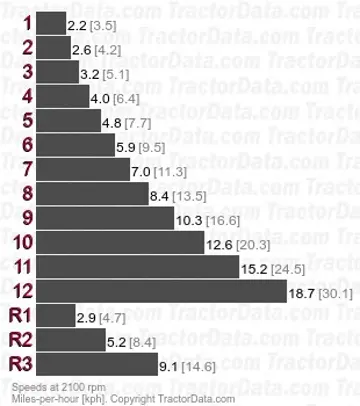

Transmission — 12 forward and 3 reverse full power shift

Type	full power shift
Gears	12 forward and 3 reverse

Dimensions

CaseIH 9370QT Tracks
Width	30 inches 76 cm

Dimensions
Wheelbase	148 inches 375 cm
Width	120 inches 304 cm
Height (cab)	140.4 inches 356 cm
Weight	44000 lbs 19958 kg
Front axle	4 inch diameter 101 mm
Rear axle	4 inch diameter 101 mm

Photos

CaseIH Quadtrac 9370QT

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Quadtrac 9370QT based on its 360 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Quadtrac 9370QT.

Estimated Continuous Field Runtime: 13.4 hrs

Approximately 13.4 hours of continuous field operation at ~75% rated power on a full tank (250 gal / 946.4 L).

Estimated 75% Load Fuel Burn~18.7 gal/hr (70.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
