CaseIH CX50

The CaseIH CX50 is a tractor produced by Caseih. It is equipped with a 165 ci 2.7 L engine. The rated power output is 48 hp 35.8 kW. Transmission: 24 forward and 12 reverse. Drive type: 4x2 2WD. Operating weight: 7286 to 7970 pounds.

Overview

	1998 - 2002 CX Utility SeriesUtility tractor
1998 - 2002
CX Utility Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price	$24,000 (1999)

Variants
CX50	deluxe model
C50	basic model

CaseIH CX50 Engine
Perkins 2.7L 3-cyl diesel
Engine details ...

CaseIH CX50 Power
Engine (gross)	53 hp 39.5 kW
Engine (net)	48 hp 35.8 kW
PTO (claimed)	40 hp 29.8 kW
Drawbar (tested)	35.4 hp 26.4 kW
PTO (tested)	42.5 hp 31.7 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	electro-hydraulic
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Two-post ROPS with flat platform. Optional cab with air-conditioning.

Capacity
Fuel	42 gal 159.0 L
Hydraulic system	9.1 gal (2WD) 34.4 L
	9.8 gal (4WD) 37.1 L

Hydraulics
Type	open center
Capacity	9.1 gal (2WD) 34.4 L
	9.8 gal (4WD) 37.1 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Pump flow	13.7 gpm 51.9 lpm
Total flow	22.2 gpm (total) 84.0 lpm
	13.7 gpm (main pump) 51.9 lpm
	8.5 gpm (lube pump) 32.2 lpm

Tractor hitch
Rear Type	II/I
Control	electronic upper link
Rear lift	3,665 lbs 1662 kg
	5,097 lbs (optional) 2311 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	540/1000 (optional dual shaft)

Dimensions & Tires
Wheelbase	84.8 inches (2WD) 215 cm
	87.2 inches (4WD) 221 cm
Weight	7286 to 7970 pounds
Front tire	7.50-16
Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery CCA	650
	810 (optional)
Battery volts	12

References
CX Series Tractors published in 1997, by CaseIH

Engine

Engine Detail — 165 ci / 2.7 L Diesel

Manufacturer	Perkins 903.27
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	165 ci 2.7 L
Bore/Stroke	3.74x5.00 inches 95 x 127 mm
Power (net)	48 hp 35.8 kW
Power (gross)	53 hp 39.5 kW
Fuel system	mechanical direct injection with 5-hole injectors
Air cleaner	dual paper elements
Compression	17.25:1
Rated RPM	2250
Torque	140 lb-ft 189.8 Nm
Torque RPM	1200
Starter volts	12
Oil capacity	8 qts 7.6 L
Oil change	250 h
Coolant capacity	12.57 qts 11.9 L

Transmission

Transmission options
8-speed synchro shuttle
16-speed partial power shift
24-speed creeper

Transmission — 8 forward and reverse synchro shuttle

Type	synchro shuttle
Gears	8 forward and reverse
Clutch	12-inch dry disc
Oil capacity	36.4 qts (2WD) 34.4 L
	39.1 qts (4WD) 37.0 L
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever.

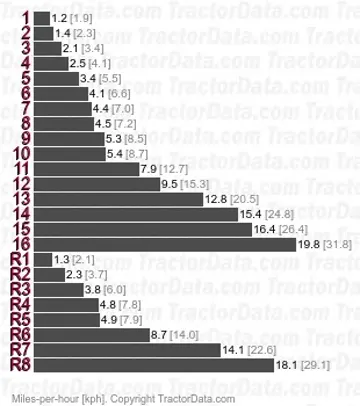

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	12-inch dry disc
Oil capacity	36.4 qts (2WD) 34.4 L
	39.1 qts (4WD) 37.0 L
Four gears (1-4) in two ranges (low/high) with push-button power shift on the gear shift lever. Left-hand shuttle lever on the steering column.
Transmission
Type	creeper
Gears	24 forward and 12 reverse

Dimensions

CaseIH CX50 Tires
Ag front	7.50-16
Ag rear	14.9-28

Dimensions
Wheelbase	84.8 inches (2WD) 215 cm
	87.2 inches (4WD) 221 cm

CaseIH CX50 Weight
Shipping	7,286 lbs (2WD) 3304 kg
	7,970 lbs (4WD) 3615 kg
Max capacity	10,150 lbs 4604 kg

Tests

OCED Tractor Test 1893
Diesel 16-speed 4WD April 1999 - June 1999, Link: OCED Tractor Test 1893 file
PTO performance
Power at rated engine speed	42.5 hp 31.7 kW
Fuel use	2.8 gal/hour 10.6 l/hour
Power at rated PTO speed	40.9 hp 30.5 kW
Fuel use	2.6 gal/hour 9.8 l/hour
Drawbar performance
Max power	35.4 hp 26.4 kW
Fuel use	2.8 gal/hour 10.6 l/hour
Gear 1-High-TA used for power test.
Max pull	7,990 lbs 3624 kg
Gear 1-Low-Direct used for pull test.

Photos

CaseIH CX50 tractor photo
