CaseIH Farmall DX48

The CaseIH Farmall DX48 is a tractor produced by Caseih. It is equipped with a 135.2 ci 2.2 L engine. The listed engine power is Diesel (gross): 48 hp / 35.8 kW. Transmission: 12 forward and reverse. Operating weight: 4315 lbs 1957 kg.

Engine Power

Diesel (gross): 48 hp / 35.8 kW

Fuel & Capacities

13.5 gal 51.1 L

Transmission

12 forward and reverse

Operating Weight

4315 lbs 1957 kg

Overview

	2004 - 2008 DX SeriesCompact Utility tractor DX Series Compact Utility tractor

Production
Manufacturer	CaseIH
Compact Utility tractor

Variants
TC48DA	similar New Holland model

CaseIH Farmall DX48 Engine
Shibaura 2.2L 4-cyl diesel
Fuel tank	13.5 gal 51.1 L
Engine details ...

CaseIH Farmall DX48 Transmission
12-speed synchronized shuttle
Transmission details ...

CaseIH Farmall DX48 Power
Engine (gross)	48 hp 35.8 kW
PTO (claimed)	40 hp 29.8 kW
PTO (tested)	40.98 hp 30.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent mechanical wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Total flow	17.55 gpm 66.4 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	3465 lbs 1571 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2475

Dimensions & Tires
Wheelbase	74.8 inches 189 cm
Weight	4315 lbs 1957 kg
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

DX Series Farmall Tractors published in 2004, by CaseIH
DX Series Farmall Tractors published in 2003, by CaseIH
DX Series Farmall Tractors and Integrated Implements published in 2004, by CaseIH

Engine

Engine Detail — 135.2 ci / 2.2 L Diesel

Manufacturer	Shibaura N844L
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	135.2 ci 2.2 L
Bore/Stroke	3.307x3.937 inches 84 x 100 mm
Power (gross)	48 hp 35.8 kW
Air cleaner	dual paper elements
Compression	22.4:1
Rated RPM	2800
Starter volts	12

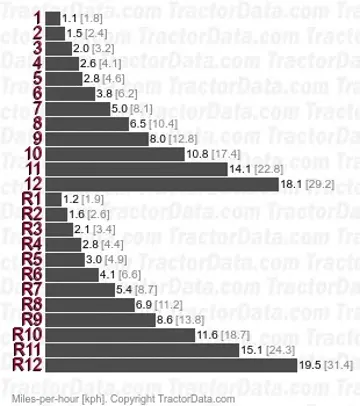

Transmission

Transmission — 12 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	12 forward and reverse

Dimensions

CaseIH Farmall DX48 Tires

Dimensions
Wheelbase	74.8 inches 189 cm
Operating weight	4315 lbs 1957 kg

Tests

Nebraska Tractor Test 1836A
Diesel 12-speed 4WD April 27 - 30, 2004 Link: Nebraska Tractor Test 1836A file
PTO performance
Power at rated engine speed	40.98 hp 30.6 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Power at rated PTO speed	38.56 hp 28.8 kW
Fuel use	3.0 gal/hour 11.4 l/hour

Attachments

Attachment overview
Front-end loader
Backhoe

CaseIH BHX190 Backhoe
Backhoe type	CaseIH BHX190 Backhoe
Digging depth	90 inches 228 cm
Bucket force	2,712 lbs 1230 kg
Dipperstick force	1,950 lbs 884 kg

CaseIH BHX1102 Backhoe
Backhoe type	CaseIH BHX1102 Backhoe
Digging depth	102 inches 259 cm
Bucket force	3,550 lbs 1610 kg
Dipperstick force	2,225 lbs 1009 kg

CaseIH BHX1114 Backhoe
Backhoe type	CaseIH BHX1114 Backhoe
Digging depth	114 inches 289 cm
Bucket force	4,440 lbs 2013 kg
Dipperstick force	2,800 lbs 1270 kg

Photos

CaseIH Farmall DX48 compact utility tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Farmall DX48 based on its 48 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Farmall DX48.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (13.5 gal / 51.1 L).

Estimated 75% Load Fuel Burn~2.5 gal/hr (9.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
