CaseIH Steiger 350

The CaseIH Steiger 350 is a tractor produced by Caseih. It is equipped with a 531 ci 8.7 L engine. The rated power output is 350 hp 261.0 kW. Transmission: 16 forward and 2 reverse. Operating weight: 35,848 lbs (dual 710/70R42) 16260 kg.

Overview

	2011 - 2013 Four-wheel Drive (4WD) tractor
2011 - 2013
Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

CaseIH Steiger 350 Engine
8.7L 6-cyl diesel
Fuel tank	220 gal 832.7 L
Exhaust fluid (DEF)	46 gal 174.1 L
Engine details ...

CaseIH Steiger 350 Transmission
16-speed full power shift
Transmission details ...

CaseIH Steiger 350 Power
Engine	350 hp 261.0 kW
PTO (claimed)	290 hp 216.3 kW
PTO (tested)	341.13 hp 254.4 kW
Performance test details ...

Mechanical
Four-wheel drive
Surveyor cab standard.

Hydraulics
Type	pressure flow compensating (PFC)
Rear valves	4 to 8
Pump flow	35 gpm 132.5 lpm
Total flow	40 gpm 151.4 lpm
	55 gpm (High Flow) 208.2 lpm
	108 gpm (Twin Flow) 408.8 lpm

Tractor hitch
Rear Type	4N
Rear lift	20,000 lbs 9072 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1-3/4)

Dimensions & Tires
Wheelbase	148 inches 375 cm
Weight	35,848 lbs 16260 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	1000
Battery volts	12

References
Steiger Series Tractors published in 2011, by CaseIH

Engine

Engine Detail — 531 ci / 8.7 L Diesel

Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	531 ci 8.7 L
Emissions	Interim Tier 4
Emission control	selective catalytic reduction (SCR)
Power	350 hp 261.0 kW
Maximum Power	385 hp 287.1 kW
Rated RPM	2000
Starter type	electric

Transmission

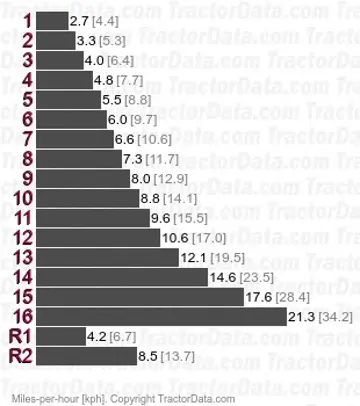

Transmission — 16 forward and 2 reverse full power shift

Type	full power shift
Gears	16 forward and 2 reverse
Clutch	electro-hydraulic wet discs

Dimensions

CaseIH Steiger 350 Tires

Dimensions
Wheelbase	148 inches 375 cm
Weight	35,848 lbs (dual 710/70R42) 16260 kg
Ballasted weight	42,000 lbs 19051 kg
Rear axle	4.5 by 120 inches 114 by 3048 mm
Rear axle	5.0 by 120 inches 127 by 3048 mm

Tests

OCED Tractor Test 2008
Diesel 16-speed 4WD November 9 - 15, 2011 Link: OCED Tractor Test 2008 file
PTO performance
Max power	341.13 hp 254.4 kW
Fuel use	17.6 gal/hour 66.6 l/hour
Power at rated engine speed	307.70 hp 229.5 kW
Fuel use	16.4 gal/hour 62.1 l/hour
Power at rated PTO speed	307.70 hp 229.5 kW
Fuel use	16.4 gal/hour 62.1 l/hour

Photos

CaseIH Steiger 350 tractor photo
