CaseIH Steiger 370

The CaseIH Steiger 370 is a tractor produced by Caseih. It is equipped with a 531 ci 8.7 L engine. The listed engine power is Diesel (listed): 370 hp / 275.9 kW. Transmission: 16 forward and 2 reverse. Operating weight: 38469 to 38759 pounds.

Engine Power

Diesel (listed): 370 hp / 275.9 kW

Fuel & Capacities

220 gal 832.7 L

Transmission

16 forward and 2 reverse

Operating Weight

38469 to 38759 pounds

Overview

	2014 - 2023 Steiger 4WD SeriesFour-wheel Drive (4WD) tractor Steiger 4WD Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH (a part of CNH)
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $314,043 in 2015

Variants
370	wheeled tractor
370RT	crawler tractor
T9.435	similar New Holland model

CaseIH Steiger 370 Engine
FPT 8.7L 6-cyl diesel
Engine details ...

CaseIH Steiger 370 Transmission
16-speed full power shift
Transmission details ...

CaseIH Steiger 370 Power
Engine	370 hp 275.9 kW
PTO (claimed)	311 hp 231.9 kW
Drawbar (tested)	300.99 hp 224.4 kW
PTO (tested)	366.46 hp 273.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Steering	hydraulic articulated
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Surveyor Cab standard with air-conditioning.

Capacity
Fuel	220 gal 832.7 L
Exhaust fluid (DEF)	42 gal 159.0 L
Hydraulic system	62.5 gal 236.6 L

Hydraulics
Type	closed center load sensing
Capacity	62.5 gal 236.6 L
Valves	4 to 8
Pump flow	40 gpm 151.4 lpm
	55 gpm*High Flow option 208.2 lpm
	108 gpm*TwinFlow option 408.8 lpm
SCV flow	35 gpm 132.5 lpm

Tractor hitch
Rear Type	IVN
	III *Optional.
Rear lift (at 24"/610mm)	20000 lbs 9072 kg
Rear Arms	quick coupler
Drawbar	Cat. 4

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
Engine RPM	1000@1998 (early)
	1000@1811 (late)

Dimensions & Tires
Wheelbase	148 inches 375 cm
Weight	38469 to 38759 pounds
Front tire	710/70R42
Rear tire	710/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	1000
Battery volts	12

References

Steiger 370-620 Tractors published in 2014, by CaseIH

Engine

Engine Detail — 531 ci / 8.7 L Diesel

Manufacturer	FPT
Configuration	variable-geometry turbocharger air-to-air aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	531 ci 8.7 L
Bore/Stroke	4.61x5.31 inches 117 x 135 mm
Emissions	Tier 4
Emission control	selective catalytic reduction (SCR)
Power	370 hp 275.9 kW
Maximum Power	405 hp 302.0 kW
Fuel system	electronic high pressure common rail
Cooling system	viscous fan drive
Air cleaner	two stage dry
Compression	15.9:1
Rated RPM	2000
Idle RPM	850-2350
Torque	1361 lb-ft 1845.5 Nm
Torque RPM	1400
Firing order	1-4-2-6-3-5
Starter	electric
Starter volts	12
Oil capacity	26.4 qts 25.0 L
Coolant capacity	13.2 qts 12.5 L

Transmission

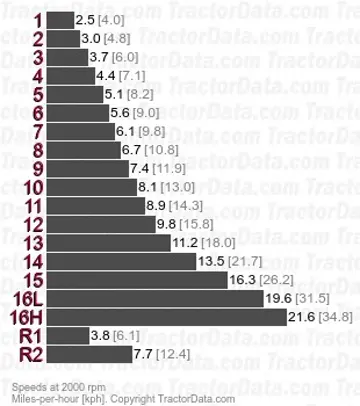

Transmission — 16 forward and 2 reverse full power shift

Type	full power shift
Gears	16 forward and 2 reverse
Clutch	electro-hydraulic
Oil capacity	66.6 qts 63.0 L
With group 47 tires.

Dimensions

CaseIH Steiger 370 Tires
Ag front	710/70R42
Ag rear	710/70R42

Dimensions
Wheelbase	148 inches 375 cm
Length	291 inches 739 cm
Width	100.4 inches (frame) 255 cm
	120 inches (axle) 304 cm
	174 inches (duals) 441 cm
Height (cab)	144.2 inches 366 cm
Height (exhaust)	157 inches 398 cm
Clearance (drawbar)	17.4 inches 44 cm
Front axle	Bar: 4.5 by 120 inches 114 by 3048 mm
Front axle	Bar: 5.0 by 120 inches 127 by 3048 mm
Bar rear axle	4.5 by 120 inches 114 by 3048 mm
Bar rear axle	5.0 by 120 inches 127 by 3048 mm

CaseIH Steiger 370 Weight
	38759 lbs 17581 kg
Shipping	38469 lbs 17449 kg
Max capacity	42000 lbs (standard) 19051 kg
	49500 lbs (heavy duty) 22453 kg

Tests

OCED Tractor Test 2092
Diesel 16-speed 4WD September 9 - 29, 2014 Link: OCED Tractor Test 2092 file
PTO performance
Max power	366.46 hp 273.3 kW
Fuel use	19.2 gal/hour 72.7 l/hour
Power at rated engine speed	323.32 hp 241.1 kW
Fuel use	17.4 gal/hour 65.9 l/hour
Power at rated PTO speed	364.07 hp 271.5 kW
Fuel use	19.0 gal/hour 71.9 l/hour
Drawbar performance
Max power	300.99 hp 224.4 kW
Fuel use	17.4 gal/hour 65.9 l/hour
Gear 4 used for power test.
Max pull	37687 lbs 17094 kg
Gear 1 used for pull test.

Photos

CaseIH Steiger 370 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Steiger 370 based on its 370 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Steiger 370.

Estimated Continuous Field Runtime: 11.4 hrs

Approximately 11.4 hours of continuous field operation at ~75% rated power on a full tank (220 gal / 832.8 L).

Estimated 75% Load Fuel Burn~19.2 gal/hr (72.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
