Caterpillar 10-Ton

The Caterpillar 10-Ton is a tractor produced by Caterpillar. It is equipped with a 929 ci 15.2 L engine. Transmission: 3 forward and 1 reverse. Drive type: crawler. Operating weight: 20000 lbs 9072 kg.

Overview

	1925 Agricultural Crawler tractor
1925
Agricultural Crawler tractor

Production
Manufacturer	Caterpillar
Agricultural Crawler tractor
Built in Peoria, Illinois, USA
The Caterpillar model 10-Ton was a continuation of the Holt 10-Ton, in production since 1918.

Caterpillar 10-Ton Engine
Holt 15.2L 4-cyl gasoline
Fuel tank	46 gal 174.1 L
Engine details ...

Caterpillar 10-Ton Transmission
3-speed gear
Transmission details ...

Caterpillar 10-Ton Power
Drawbar (claimed)	40 hp 29.8 kW
Belt (claimed)	55 hp 41.0 kW

Mechanical
Drive	crawler
Open operator station.

Dimensions & Tracks
Weight	20000 lbs 9072 kg
15-inch tracks
Full dimensions and tracks ...

References
Care and Operation of "Caterpillar" 10 Ton Tractor (C-224)

Engine

Engine Detail — 929 ci / 15.2 L Gasoline

Manufacturer	Holt M-11
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	929 ci 15.2 L
Bore/Stroke	6.50x7.00 inches 165 x 178 mm
Rated RPM	750
Oil capacity	18 qts 17.0 L
Coolant capacity	54 qts 51.1 L

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Oil capacity	28 qts 26.5 L

Dimensions

Caterpillar 10-Ton Tracks
Width	15 inches 38 cm
Length on ground	96 inches 243 cm
Area on ground	2880 in² 1.9 m²

Dimensions
Length	151 inches 383 cm
Width	82 inches 208 cm
Height	113 inches 287 cm
Weight	20000 lbs 9072 kg
Gauge	60.5 inches 153 cm

Photos

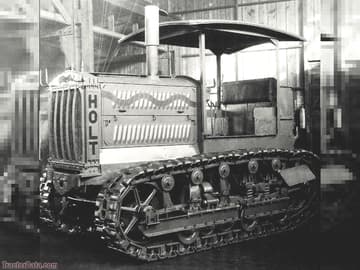

Caterpillar 10-Ton

Caterpillar 10-Ton
