Caterpillar 5-Ton
The Caterpillar 5-Ton is a tractor produced by Caterpillar. It is equipped with a 425 ci 7.0 L engine. Transmission: 3 forward and 1 reverse. Drive type: crawler. Operating weight: 9400 lbs 4263 kg.
Drive & Traction
crawler
Fuel & Capacities
32 gal
121.1 L
Transmission
3 forward and 1 reverse
Operating Weight
9400 lbs
4263 kg
Caterpillar 5-Ton Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1925 - 1926
Agricultural Crawler tractor |
|---|---|
1925 - 1926 | |
Agricultural Crawler tractor | |
Production | |
|---|---|
Manufacturer | Caterpillar |
Agricultural Crawler tractor | |
Built in Peoria, Illinois, USA | |
Caterpillar 5-Ton Engine | |
|---|---|
Caterpillar 7.0L 4-cyl gasoline | |
Fuel tank | 32 gal
121.1 L |
Engine details ...  | |
Caterpillar 5-Ton Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Caterpillar 5-Ton Power | |
|---|---|
Belt (claimed) | 40 hp
29.8 kW |
Mechanical | |
|---|---|
Drive | crawler |
Open operator station | |
Dimensions & Tracks | |
|---|---|
Weight | 9400 lbs
4263 kg |
11-inch tracks | |
Full dimensions and tracks ...  | |
References | |
|---|---|
 | |
Care and Operation of "Caterpillar" 5 Ton Tractor (0-131) published in 1919 |
Engine
Engine Detail — 425 ci / 7.0 L Gasoline
Manufacturer | Caterpillar |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 425 ci
7.0 L |
Bore/Stroke | 4.75x6.00 inches
121 x 152 mm |
Rated RPM | 1050 |
Oil capacity | 10 qts
9.5 L |
Coolant capacity | 30 qts
28.4 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Oil capacity | 12.7 qts
12.0 L |
 | |
Dimensions
Caterpillar 5-Ton Tracks | |
|---|---|
Width | 11 inches
27 cm |
Length on ground | 91 inches
231 cm |
Area on ground | 2002 in²
1.3 m² |
Dimensions | |
|---|---|
Length | 124 inches
314 cm |
Width | 63 inches
160 cm |
Height | 64 inches
162 cm |
Weight | 9400 lbs
4263 kg |
Gauge | 48.875 inches
124 cm |
Photos

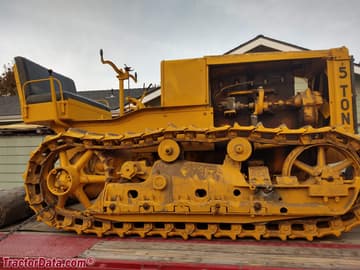

Caterpillar 5-Ton
