Centaur KV
The Centaur KV is a tractor produced by Centaur. It is equipped with a 133 ci 2.2 L engine. Transmission: 4 forward and 1 reverse.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Centaur KV Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1940 - 1948
Standard-tread tractorLe Roi built |
|---|---|
1940 - 1948 | |
Standard-tread tractor | |
Le Roi built | |
1940 - 1948 | |
|---|---|
Standard-tread tractor | |
Le Roi built |
Production | |
|---|---|
Distributor | Centaur |
Manufacturer | Le Roi |
Standard-tread tractor | |
Built in Greenwich, Ohio, USA | |
Centaur KV Engine | |
|---|---|
Le Roi 2.2L 4-cyl gasoline | |
Engine details ...  |
Centaur KV Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Centaur KV Power | |
|---|---|
Plows | 1 (14-inch) |
2 (12-inch) | |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
| 1940 - 1948
Standard-tread tractorLe Roi built |
|---|---|
1940 - 1948 | |
Standard-tread tractor | |
Le Roi built | |
1940 - 1948 | |
|---|---|
Standard-tread tractor | |
Le Roi built |
Engine Detail — 133 ci / 2.2 L Gasoline
Manufacturer | Le Roi D133 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 133 ci
2.2 L |
Bore/Stroke | 3.25x4.00 inches
83 x 102 mm |
Rated RPM | 1400 |
Transmission
| 1940 - 1948
Standard-tread tractorLe Roi built |
|---|---|
1940 - 1948 | |
Standard-tread tractor | |
Le Roi built | |
1940 - 1948 | |
|---|---|
Standard-tread tractor | |
Le Roi built |
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Dimensions
| 1940 - 1948
Standard-tread tractorLe Roi built |
|---|---|
1940 - 1948 | |
Standard-tread tractor | |
Le Roi built | |
1940 - 1948 | |
|---|---|
Standard-tread tractor | |
Le Roi built |
Centaur KV Tires |
|---|
Dimensions |
|---|
Photos

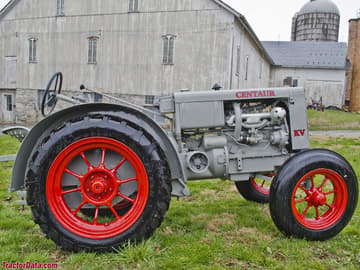

1937 Centuar KV owned by Kenneth Shertzer.
