century 3035
 | 2002 - 2004
Compact Utility tractorKukje built | 2002 - 2004 | Compact Utility tractor | Kukje built |
|---|---|---|---|---|
2002 - 2004 | ||||
Compact Utility tractor | ||||
Kukje built | ||||
2002 - 2004 | |
|---|---|
Compact Utility tractor | |
Kukje built |
Production | |
|---|---|
Distributor | Century |
Manufacturer | Kukje |
Compact Utility tractor | |
Built in Yangsu-ri, South Korea | |
Century 3035 Engine | |
|---|---|
Kukje 1.8L 3-cyl diesel | |
Engine details ...  |
Century 3035 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Century 3035 Power | |
|---|---|
Engine (gross) | 37 hp
27.6 kW |
Engine (net) | 35 hp
26.1 kW |
PTO (claimed) | 31 hp
23.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. | |

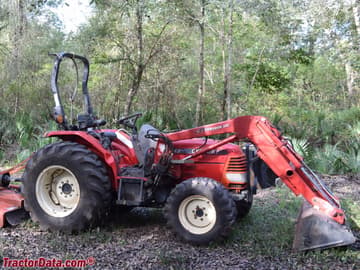

Photos | |
|---|---|
 | |
Century 3035 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 or 2 |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 2580 lbs
1170 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *Two-stage foot clutch. |
Clutch | mechanical dry disc |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 69 inches
175 cm |
Weight | 3770 lbs
1710 kg |
Full dimensions and tires ...  | |
Century 3035 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
