Challenger MT755C

The Challenger MT755C is a tractor produced by Challenger. It is equipped with a 538 ci 8.8 L engine. The listed engine power is Engine Detail — 538 ci / 8.8 L (gross): 301 hp / 224.5 kW. Transmission: Cat PowerShift. Drive type: crawler. Operating weight: 31,075 lbs 14095 kg.

Engine Power

Engine Detail — 538 ci / 8.8 L (gross): 301 hp / 224.5 kW

Drive & Traction

crawler

Fuel & Capacities

118 gal 446.6 L

Transmission

Cat PowerShift

Operating Weight

31,075 lbs 14095 kg

Overview

	2009 - 2011 MT700C SeriesAgricultural Crawler tractor MT700C Series Agricultural Crawler tractor

Production
Manufacturer	Challenger (a part of AGCO)
Agricultural Crawler tractor
Built in Jackson, Minnesota, USA
Original price was $228,190 in 2009

Challenger MT755C Engine
Caterpillar 8.8L 6-cyl
Fuel tank	118 gal 446.6 L
	208 galOptOptional 787.3 L
Engine details ...

Challenger MT755C Transmission
16-speed full power shift
Transmission details ...

Challenger MT755C Power
Engine (gross)	301 hp 224.5 kW
PTO (claimed)	245 hp 182.7 kW
Drawbar (tested)	213.58 hp 159.3 kW
PTO (tested)	315.95 hp 235.6 kW
Performance test details ...

Mechanical
Drive	crawler
Steering	speed sensitive differential
Trailer brakes	hydraulic OptOptional
Cab standard with air-conditioning.

Hydraulics
Type	closed center pressure-flow compensated
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	36 gpm 136.3 lpm
Total flow	43.5 gpm 164.6 lpm
	59 gpmOptOptional 223.3 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift	16,000 lbs 7257 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)

Dimensions & Tracks
Wheelbase	96 inches 243 cm
Weight	31,075 lbs 14095 kg
Tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	185
Batteries	2
Battery CCA	1000
Battery volts	12

Engine

Engine Detail — 538 ci / 8.8 L

Manufacturer	Caterpillar C9 ACERT
Configuration	turbocharged aftercooled, 6-cylinder 24-valve, liquid-cooled
Displacement	538 ci 8.8 L
Bore/Stroke	4.41x5.87 inches 112 x 149 mm
Emissions	Tier III
Power (gross)	301 hp 224.5 kW
Rated RPM	2100
Starter	electric
Starter volts	12

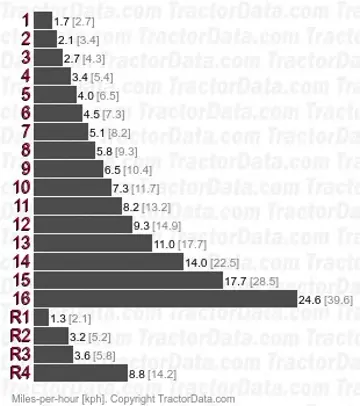

Transmission

Transmission — Cat PowerShift

Transmission	Cat PowerShift
Type	full power shift
Gears	16 forward and 4 reverse
Clutch	hydraulic wet disc

Dimensions

Challenger MT755C Tracks
Size	18-inch belts
Option	14-inch belts
	16-inch belts
	25-inch belts
	30-inch belts

Dimensions
Wheelbase	96 inches 243 cm
Length	233 inches 591 cm
Width	133 inches 337 cm
Height (cab)	135.5 inches 344 cm
Shipping weight	31,075 lbs 14095 kg
Max weight	36,000 lbs 16329 kg
Clearance (drawbar)	14.3 inches 36 cm
Gauge	60 to 88 inches 152 to 223 cm
Gauge	60 to 120 inches 152 to 304 cm
Gauge	120 to 160 inches 304 to 406 cm

Tests

OCED Tractor Test 1859A
Diesel 16-speed crawler October 25 - November 2, 2005 Link: OCED Tractor Test 1859A file
PTO performance
Max power	315.95 hp 235.6 kW
Fuel use	17.3 gal/hour 65.5 l/hour
Power at rated engine speed	245.61 hp 183.2 kW
Fuel use	14.5 gal/hour 54.9 l/hour
Power at rated PTO speed	277.64 hp 207.0 kW
Fuel use	15.9 gal/hour 60.2 l/hour
Drawbar performance
Max power	213.58 hp 159.3 kW
Fuel use	14.4 gal/hour 54.5 l/hour
Gear 6 used for power test.
Max pull	30,267 lbs 13729 kg
Gear 3 used for pull test.

Photos

Challenger MT755C tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Challenger MT755C based on its 301 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Challenger MT755C.

Estimated Continuous Field Runtime: 7.5 hrs

Approximately 7.5 hours of continuous field operation at ~75% rated power on a full tank (118 gal / 446.7 L).

Estimated 75% Load Fuel Burn~15.7 gal/hr (59.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
