Chamberlain 60DA

The Chamberlain 60DA is a tractor produced by Chamberlain. It is equipped with a 212.7 ci 3.5 L engine. Transmission: 9 forward and 3 reverse. Operating weight: 9500 lbs 4309 kg.

Fuel & Capacities

21.6 gal 81.8 L

Transmission

9 forward and 3 reverse

Operating Weight

9500 lbs 4309 kg

Overview

	1952 - 1954 Standard-tread tractor

Production
Manufacturer	Chamberlain
Standard-tread tractor
Built in Welshpool, Australia
Total built	190

Variants
60D	wide gear ratio
60DA	close gear ratio

Chamberlain 60DA Engine
Detroit Diesel 3.5L 3-cyl diesel
Fuel tank	21.6 gal 81.8 L
Engine details ...

Chamberlain 60DA Transmission
9-speed sliding gear
Transmission details ...

Chamberlain 60DA Power
Drawbar (claimed)	45 hp 33.6 kW
Belt (claimed)	56 hp 41.8 kW

Mechanical
Two-wheel drive
Final drives	spur gear
Steering	mechanical - recirculating ball
Open operator station.

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Wheelbase	83 inches 210 cm
Weight	9500 lbs 4309 kg
Front tire	7.50x18
Rear tire	15.00x30
Full dimensions and tires ...

Belt Pulley
Diameter	13 inches 33 cm
Width	7 inches 17 cm
RPM	810
Speed	2740 ft/min 835.15 meters/min

Engine

Engine Detail — 212.7 ci / 3.5 L Diesel

Manufacturer	Detroit Diesel 3-71
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	212.7 ci 3.5 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Compression	17:1
Rated RPM	1500
Starter volts	12

Transmission

Transmission — 9 forward and 3 reverse sliding gear

Type	sliding gear
Gears	9 forward and 3 reverse

Dimensions

Chamberlain 60DA Tires
Ag front	7.50x18
Ag rear	15.00x30

Dimensions
Wheelbase	83 inches 210 cm
Length	135 inches 342 cm
Width	68 inches 172 cm
Height	90 inches 228 cm
Weight	9500 lbs 4309 kg

Photos

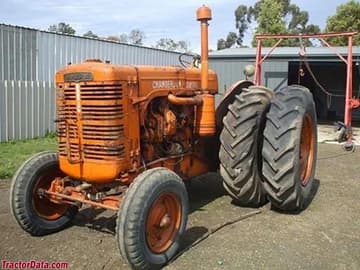

Chamberlain 60DA

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Chamberlain 60DA.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
