Chamberlain Super 70

The Chamberlain Super 70 is a tractor produced by Chamberlain. It is equipped with a 213 ci 3.5 L engine. Transmission: 9 forward and 3 reverse. Operating weight: 9700 lbs 4399 kg.

Fuel & Capacities

21.6 gal 81.8 L

Transmission

9 forward and 3 reverse

Operating Weight

9700 lbs 4399 kg

Overview

	1954 - 1963 Standard-tread tractor

Production
Manufacturer	Chamberlain
Standard-tread tractor
Built in Welshpool, Australia
Total built	1,010

Chamberlain Super 70 Engine
Detroit Diesel 3.5L 3-cyl diesel
Fuel tank	21.6 gal 81.8 L
Engine details ...

Chamberlain Super 70 Transmission
9-speed sliding gear
Transmission details ...

Chamberlain Super 70 Power
Drawbar (claimed)	52.5 hp 39.1 kW
Belt (claimed)	65 hp 48.5 kW

Mechanical
Two-wheel drive
Final drives	bull gear
Open operator station.

Power Take-off (PTO)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	83 inches 210 cm
Weight	9700 lbs 4399 kg
Front tire	7.50x18
Rear tire	23.1x26
Full dimensions and tires ...

Belt Pulley
Diameter	13 inches 33 cm
Width	7 inches 17 cm
RPM	810
Speed	2740 ft/min 835.15 meters/min

References

Super 70 Diesel Tractor published in 1960, by Chamberlain

Engine

Engine Detail — 213 ci / 3.5 L Diesel

Manufacturer	Detroit Diesel 3-71
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	213 ci 3.5 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Compression	16:1
Rated RPM	1500
Starter volts	12

Transmission

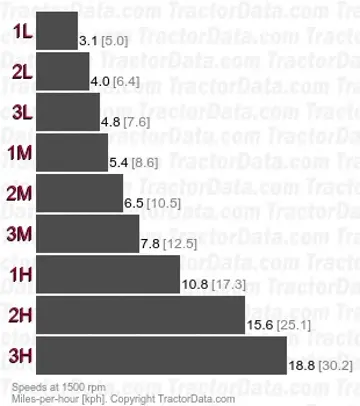

Transmission — 9 forward and 3 reverse sliding gear

Type	sliding gear
Gears	9 forward and 3 reverse

Dimensions

Chamberlain Super 70 Tires
Ag front	7.50x18
Ag rear	23.1x26

Dimensions
Wheelbase	83 inches 210 cm
Length	147 inches 373 cm
Weight	9700 lbs 4399 kg
Ground clearance	14.5 inches 36 cm

Photos

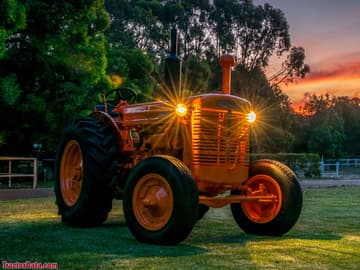

1959 Chamberlain Super 70.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Chamberlain Super 70.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
