Cletrac General GG
The Cletrac General GG is a tractor produced by Cletrac. It is equipped with a 113.12 ci 1.9 L engine. The rated power output is 19.29 hp 14.4 kW. Transmission: 3 forward and 1 reverse. Operating weight: 2105 lbs 954 kg.
Engine Power
19.29 hp
14.4 kW
Fuel & Capacities
12 gal
45.4 L
Transmission
3 forward and 1 reverse
Operating Weight
2105 lbs
954 kg
Cletrac General GG Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1939 - 1942
Row-Crop tractor |
|---|---|
1939 - 1942 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Cletrac |
Row-Crop tractor | |
Built in Cleveland, Ohio, USA | |
Total built | 7,527 |
Cletrac GG Engine | |
|---|---|
Hercules 1.9L 4-cyl gasoline | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
Cletrac GG Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Cletrac GG Power | |
|---|---|
Belt (claimed) | 18 hp
13.4 kW |
Plows | 1 (14-inch) |
Drawbar (tested) | 14.26 hp
10.6 kW |
Belt (tested) | 19.29 hp
14.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO Type | 560 |
Dimensions & Tires | |
|---|---|
Wheelbase | 80 inches
203 cm |
Weight | 2105 lbs
954 kg |
Front tire | 5.50-16 |
Rear tire | 9-24 |
Full dimensions and tires ...  | |
Links | |
|---|---|
Cletrac General GG: article at Yesterday's Tractor Co |
Belt Pulley | |
|---|---|
Diameter | 9.5 inches
24 cm |
Width | 5.5 inches
13 cm |
RPM | 1065 |
Speed | 2825 ft/min
861.06 meters/min |
Engine
Engine Detail — 113.12 ci / 1.9 L Gasoline
Manufacturer | Hercules IXA3 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 113.12 ci
1.9 L |
Bore/Stroke | 3.00x4.00 inches
76 x 102 mm |
Air cleaner | oil bath |
Compression | 5.75:1 |
Rated RPM | 1400 (drawbar) |
1700 (belt) | |
Starter type | manual start |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 12 qts
11.4 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Clutch | 9-inch dry plate |
Oil capacity | 10 qts
9.5 L |
 | |
Dimensions
Cletrac GG Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 9-24 |
Dimensions | |
|---|---|
Wheelbase | 80 inches
203 cm |
Length | 118 inches
299 cm |
Height (hood) | 55 inches
139 cm |
Shipping weight | 2105 lbs
954 kg |
Ballasted weight | 3115 lbs
1412 kg |
Tests
Nebraska Tractor Test 323 | |
|---|---|
Gasoline 3-speed 2WD
August 10 - 30, 1939
Link: Nebraska Tractor Test 323 file | |
Belt power (max) | 19.29 hp
14.4 kW |
Drawbar performance | |
Max power | 14.26 hp
10.6 kW |
Gear 3 used for power test. | |
Max pull | 1699 lbs
770 kg |
Gear 1 used for pull test. | |
Photos

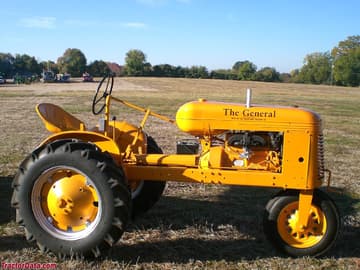

Cletrac General GG
