Cockshutt 1650

The Cockshutt 1650 is a tractor produced by Cockshutt. It is equipped with a 265 ci 4.3 L engine. The rated power output is 66.72 hp 49.8 kW. Transmission: Hydraul-Shift. Operating weight: 7,815 lbs 3544 kg.

Overview

	1964 - 1969 Row-Crop tractor
1964 - 1969
Row-Crop tractor

Series map: 15501650175058.9hp*73.3hp*88.9hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing.

Production
Manufacturer	Cockshutt (a part of White)
Row-Crop tractor
Built in Charles City, Iowa, USA
Original price	$7,100 (1969)
The El Toro four-wheel drive variant was sold in Central America and Australia/New Zealand.

Cockshutt 1650 Power
PTO (claimed)	66 hp 49.2 kW
Drawbar (tested)	58.67 hp 43.8 kW
PTO (tested)	66.72 hp 49.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	power assist
Differential disc brakes
Cab optional

Tractor hitch
Rear Type	II/I

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	1000
	540/1000

Dimensions & Tires
Wheelbase	99.25 inches (row-crop) 252 cm
	84.3 inches (utility) 214 cm
	89.5 inches (wheatland) 227 cm
	82.5 inches (4WD) 209 cm
Weight	7,815 lbs 3544 kg
Front tire	6.50-16
Rear tire	15.5-38
Full dimensions and tires ...

References
New Cockshutt 1650 Tractor published in 1966

Engine

Series map: 15501650175058.9hp*73.3hp*88.9hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing.

Engine options
Waukesha-Oliver 4.6L 6-cyl diesel
Waukesha-Oliver 4.3L 6-cyl gasoline

Engine Detail — 283 ci / 4.6 L Diesel

Manufacturer	Waukesha-Oliver
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	283 ci 4.6 L
Bore/Stroke	3.875x4.00 inches 98 x 102 mm
Compression	16.0:1
Rated RPM	2200
Starter volts	12
Oil capacity	6.7 qts 6.3 L
Coolant capacity	20 qts 18.9 L

Engine Detail — 265 ci / 4.3 L Gasoline

Manufacturer	Waukesha-Oliver
Fuel Type	Gasoline
Configuration	6-cylinder, liquid-cooled
Displacement	265 ci 4.3 L
Bore/Stroke	3.75x4.00 inches 95 x 102 mm
Air cleaner	dry
Compression	8.5:1
Rated RPM	2200
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	6.7 qts 6.3 L

Transmission

Series map: 15501650175058.9hp*73.3hp*88.9hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing.

Transmission options
6-speed unsynchronized
12-speed two-speed power shift
18-speed partial power shift

Transmission — helical gear

Transmission	helical gear
Type	unsynchronized
Gears	6 forward and 2 reverse
Clutch	304.8mm dry disc

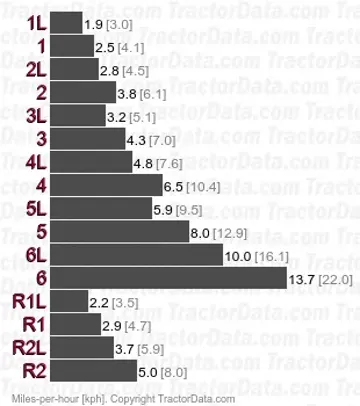

Transmission — Hydra-Power

Transmission	Hydra-Power
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	dry disc

Transmission — Hydraul-Shift

Transmission	Hydraul-Shift
Type	partial power shift
Gears	18 forward and 6 reverse
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.

Dimensions

Series map: 15501650175058.9hp*73.3hp*88.9hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing.

Cockshutt 1650 Tires
Ag front	6.50-16
Ag rear	15.5-38
Ag front	6.00-16 (row-crop)
	7.50-16 (row-crop)
	9.00-10 (row-crop)
	13.6/12-24 (4WD)
Ag rear	12.4/11-38
	13.6/12-38
	14.9/13-38
	18.4/15-34
	23.1/18-26
	16.9/14-34
	9.5/9-42

Dimensions
Wheelbase	99.25 inches (row-crop) 252 cm
	84.3 inches (utility) 214 cm
	89.5 inches (wheatland) 227 cm
	82.5 inches (4WD) 209 cm
Length	154.5 inches (row-crop) 392 cm
	140.5 inches (utility) 356 cm
	147.1 inches (wheatland) 373 cm
	145.5 inches (4WD) 369 cm
Width	81.5 inches 207 cm
Height (steering wheel)	80 inches 203 cm
Operating weight	7,815 lbs 3544 kg
Ballasted weight	11,035 lbs 5005 kg
Front tread	60 to 84 inches 152 to 213 cm (utility)
Front tread	60 inches 152 cm (wheatland)
Front tread	66/70.3 inches 167/178 cm (4WD)
Rear tread	56.5 to 89.5 inches 143 to 227 cm

Tests

Series map: 15501650175058.9hp*73.3hp*88.9hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing.

Tractor Tests
NTTL 873: diesel 12-speed 2WD
NTTL 874: gasoline 12-speed 2WD

Nebraska Tractor Test 873
Diesel 12-speed 2WD November 4 - 16, 1964 Link: Nebraska Tractor Test 873 file
PTO performance
Max power	66.3 hp 49.4 kW
Power at rated engine speed	66.28 hp 49.4 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Drawbar performance
Max power	56.51 hp 42.1 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Gear 4-low used for power test.
Max pull	8,136 lbs 3690 kg
Gear 2-low used for pull test.

Nebraska Tractor Test 874
Gasoline 12-speed 2WD November 6 - 23, 1964 Link: Nebraska Tractor Test 874 file
PTO performance
Max power	66.7 hp 49.7 kW
Power at rated engine speed	66.72 hp 49.8 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Drawbar performance
Max power	58.67 hp 43.8 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Gear 4-low used for power test.
Max pull	8,117 lbs 3681 kg
Gear 2-low used for pull test.

Attachments

Series map: 15501650175058.9hp*73.3hp*88.9hp**Estimated engine power for comparison only.

Note: the Cockshutt model 1650 is the same as the Oliver 1650. The following data is from the 1650 listing.

Photos

Cockshutt 1650 El Toro

Cockshutt 1650 El Toro
