cockshutt 1755
 | 1970 - 1975
Row-Crop tractor | 1970 - 1975 | Row-Crop tractor |
|---|---|---|---|
1970 - 1975 | |||
Row-Crop tractor | |||
1970 - 1975 | |
|---|---|
Row-Crop tractor |
Series map: 16551755185577.8hp*95.6hp*102.2hp**Estimated engine power for comparison only.
Note: the Cockshutt model 1755 is the same as the Oliver 1755. The following data is from the 1755 listing. |
|---|
Production | |
|---|---|
Manufacturer | Cockshutt |
Row-Crop tractor | |
Original price was $11,500 in 1975 | |
Cockshutt 1755 Engines | |
|---|---|
Waukesha-Oliver 5.1L 6-cyl diesel | |
Waukesha-Oliver 4.6L 6-cyl gasoline | |
Engine details ...  |
Cockshutt 1755 Transmissions | |
|---|---|
6-speed gear | |

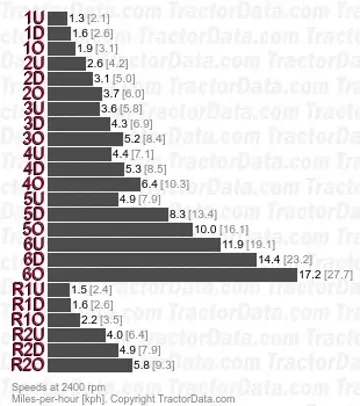

18-speed partial power shift | |
Transmission details ...  |
Cockshutt 1755 Power | |
|---|---|
PTO (claimed) | 86 hp
64.1 kW |
Drawbar (tested) | 73.87 hp
55.1 kW |
PTO (tested) | 86.93 hp
64.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Differential hydraulic dry disc brakes | |
Open operator station. Optional two-post ROPS and cab. |
Capacity | |
|---|---|
Fuel | 35 gal
132.5 L |
Hydraulic system | 6.75 gal
25.5 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 6.75 gal
25.5 L |
Pump flow | 20 gpm
75.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/II |
| II/III OptOptional |
Rear lift | 4,000 lbs
1814 kg |
| 6,000 lbs (Cat 3)
2721 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
| 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 103 inches
261 cm |
4WD Wheelbase | 86.25 inches
219 cm |
Weight | 9,600 lbs
4354 kg |
Front tire | 7.50-15 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
1755 Serial Numbers | |
|---|---|
1970 | 221-603 |
1971 | 226-445 |
1972 | 231-415 |
1973 | 238-136 |
1974 | 245-667 |
1975 | 257-515 |
Final | 260-346 |
FAQ: How to read a serial number table. | |
References | |
|---|---|
 | |
White Farm Equipment 1555/1655/1755/1855 published in 1970, by Cockshutt |
