Cockshutt Golden Arrow

The Cockshutt Golden Arrow is a tractor produced by Cockshutt. Transmission: 6 forward and 2 reverse.

Fuel & Capacities
Gasoline
Transmission
6 forward and 2 reverse

Cockshutt Golden Arrow Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Cockshutt Golden Arrow tractor photo
1957 Experimental tractor
1957
Experimental tractor
Production
Manufacturer
Cockshutt
Experimental tractor
Built in Brantford, Ontario, Canada
Total built
135
The Cockshutt Golden Arrow was a demonstation tractor to show the new draft-sensing three-point hitch. To show off this system Cockshutt put the hitch, rear end, and transmission of the new model 550 onto a model 35. The original intent was to recall all Golden Arrows and re-build them into model 550 tractors, but many of them were never returned to the factory.
Cockshutt Golden Arrow Engine
Hercules 4-cyl gasoline
Engine details ...
Cockshutt Golden Arrow Transmission
6-speed gear
Transmission details ...
Cockshutt Golden Arrow Power
Mechanical
Two-wheel drive
Open operator station
Dimensions & Tires
Full dimensions and tires ...

Engine

Engine Detail — Gasoline

Manufacturer
Hercules GO198
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled

Transmission

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse

Dimensions

Cockshutt Golden Arrow Tires
Dimensions

Photos

Cockshutt Golden Arrow with wide front end.

Cockshutt Golden Arrow with wide front end.

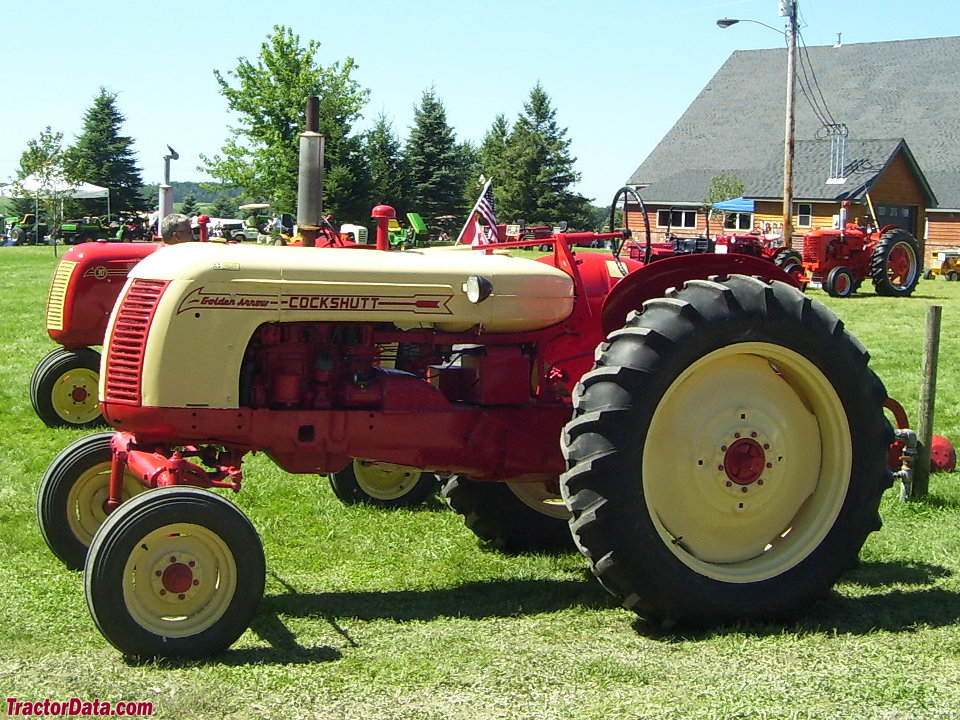

Cockshutt Golden Arrow with tricycle front end.

Cockshutt Golden Arrow with tricycle front end.

Cockshutt Golden Arrow with tricycle front end.

Cockshutt Golden Arrow with tricycle front end.
