Coleman 16-30

The Coleman 16-30 is a tractor produced by Coleman. It is equipped with a 501.4 ci 8.2 L engine. Transmission: 1 forward and reverse. Operating weight: 4600 lbs 2086 kg.

Fuel & Capacities
16 gal 60.6 L
Transmission
1 forward and reverse
Operating Weight
4600 lbs 2086 kg

Overview

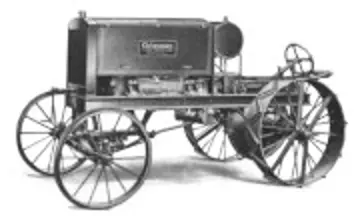

Coleman 16-30 tractor photo
1918 Standard-tread tractor
Production
Manufacturer
Coleman
Standard-tread tractor
Built in Kansas City, Missouri, USA
Original price was $1,350 in 1918
Coleman 16-30 Engine
Climax 8.2L 4-cyl kerosene
Fuel tank
16 gal 60.6 L
Aux. fuel
2 gal 7.6 L
Engine details ...
Coleman 16-30 Transmission
1-speed gear
Transmission details ...
Coleman 16-30 Power
Drawbar (claimed)
16 hp 11.9 kW
Belt (claimed)
30 hp 22.4 kW
Plows
3 (14-inch)
Mechanical
Two-wheel drive
Final drives
worm gear
Manual steering
Open operator station.
Dimensions & Tires
Weight
4600 lbs 2086 kg
Front tire
34x4
Rear tire
44x10
Full dimensions and tires ...
Belt Pulley
Diameter
12 inches 30 cm
Width
7 inches 17 cm
Speed
2100 ft/min 640.08 meters/min

Engine

Engine Detail — 501.4 ci / 8.2 L Kerosene

Manufacturer
Climax K
Fuel Type
Kerosene
Configuration
4-cylinder, liquid-cooled
Displacement
501.4 ci 8.2 L
Bore/Stroke
5.00x6.50 inches 127 x 165 mm
Fuel system
Stromberg carburetor
Rated RPM
800
Coolant capacity
56 qts 53.0 L

Transmission

Transmission — 1 forward and reverse gear

Type
gear
Gears
1 forward and reverse
16-30 gear speeds

Dimensions

Coleman 16-30 Tires
Ag front
34x4 (steel)
Ag rear
44x10 (steel)
Dimensions
Length
106 inches 269 cm
Width
66 inches 167 cm
Height
66 inches 167 cm
Weight
4600 lbs 2086 kg

Photos

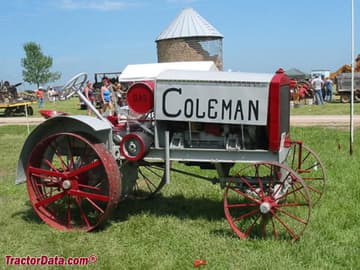

Coleman 16-30 tractor.

Coleman 16-30 tractor.

Coleman 16-30 tractor.

Coleman 16-30 tractor.
