county 1454
 | 1972 - 1978
Four-wheel Drive (4WD) tractor | 1972 - 1978 | Four-wheel Drive (4WD) tractor |
|---|---|---|---|
1972 - 1978 | |||
Four-wheel Drive (4WD) tractor | |||
1972 - 1978 | |
|---|---|
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | County |
Four-wheel Drive (4WD) tractor | |
Built in Fleet, England | |
County 1454 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 43.3 gal
163.9 L |
Engine details ...  | |
County 1454 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
County 1454 Power | |
|---|---|
Engine (gross) | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Differential lock | mechanical four-wheel |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with available air-conditioning. | |

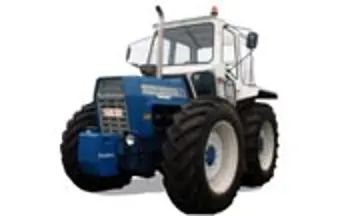

Photos | |
|---|---|
 | |
County 1454 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Total flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5954 lbs
2700 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.375) |
Engine RPM | 1000@1935 |
Dimensions & Tires | |
|---|---|
Wheelbase | 81.1 inches
205 cm |
Weight | 12880 lbs
5842 kg |
Front tire | 18.4/15-34 |
Rear tire | 18.4/15-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |

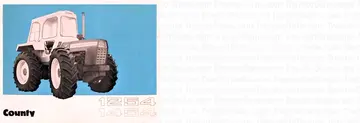

1254 - 1454 published in 1972, by County |
