Craftsman 131.8430
The Craftsman 131.8430 is a tractor produced by Craftsman Lawn Tractors. The listed engine power is Gasoline (gross): 6 hp / 4.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 300 lbs 136 kg.
Engine Power
Gasoline (gross): 6 hp / 4.5 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
300 lbs
136 kg
Overview
 | 1966
Lawn tractorRoper built
Lawn tractor
Roper built |
|---|
Production | |
|---|---|
Distributor | Craftsman (a part of Sears) |
Manufacturer | Roper |
Lawn tractor | |
Original price was $360 in 1967 | |
Craftsman 131.8430 Engine | |
|---|---|
6HP Techumseh 1-cyl gasoline | |
Engine details ...  |
Craftsman 131.8430 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 300 lbs
136 kg |
Front tire | 12.5x3.25 |
Rear tire | 14.5x5.75 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Heavy Duty Power Units published in 1966, by Sears |
Engine
Engine Detail — Gasoline
Manufacturer | Techumseh |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 6 hp
4.5 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Craftsman 131.8430 Tires | |
|---|---|
Lawn/turf front | 12.5x3.25 |
Lawn/turf rear | 14.5x5.75 |
Dimensions | |
|---|---|
Shipping weight | 300 lbs
136 kg |
Attachments
32" Mower deck | |
|---|---|
Type | mid-mount Sears |
2-blade with manual lift | |
Cutting width | 32 inches
81 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

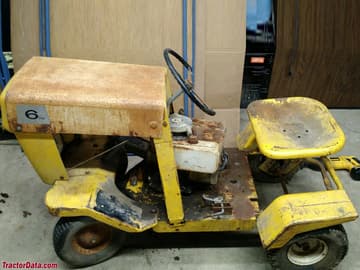

Craftsman 131.8430
131.8430
131.8430
Craftsman 131.8430 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Craftsman Lawn Tractors Craftsman 131.8430.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Craftsman Lawn Tractors Craftsman 131.8430 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Craftsman Lawn Tractors Craftsman 131.8430.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
